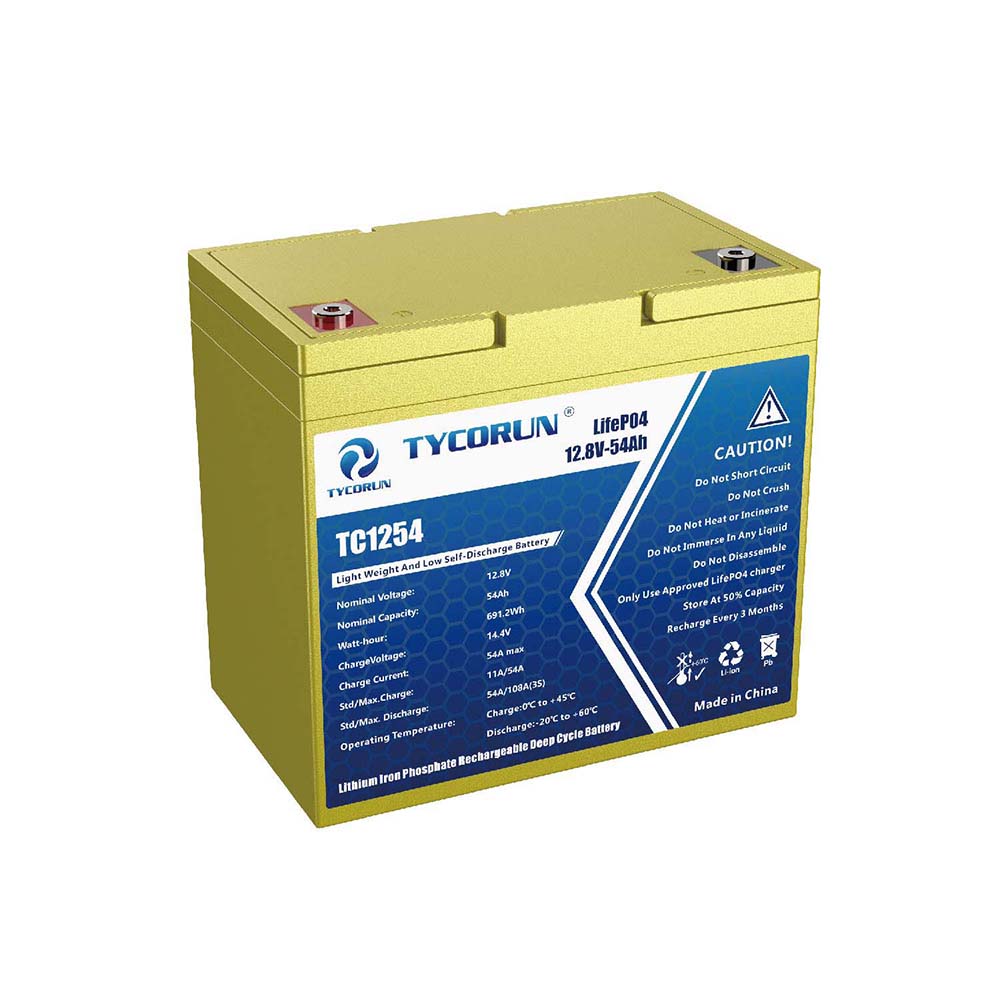

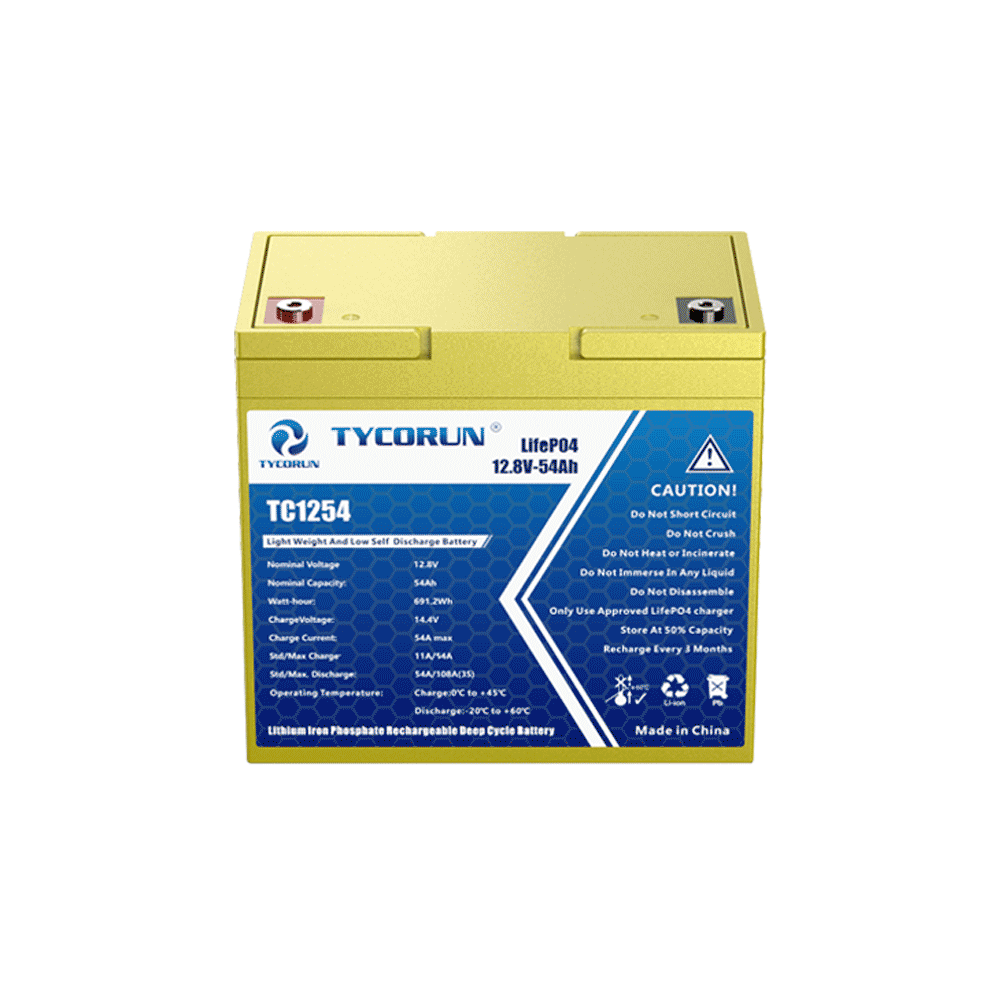

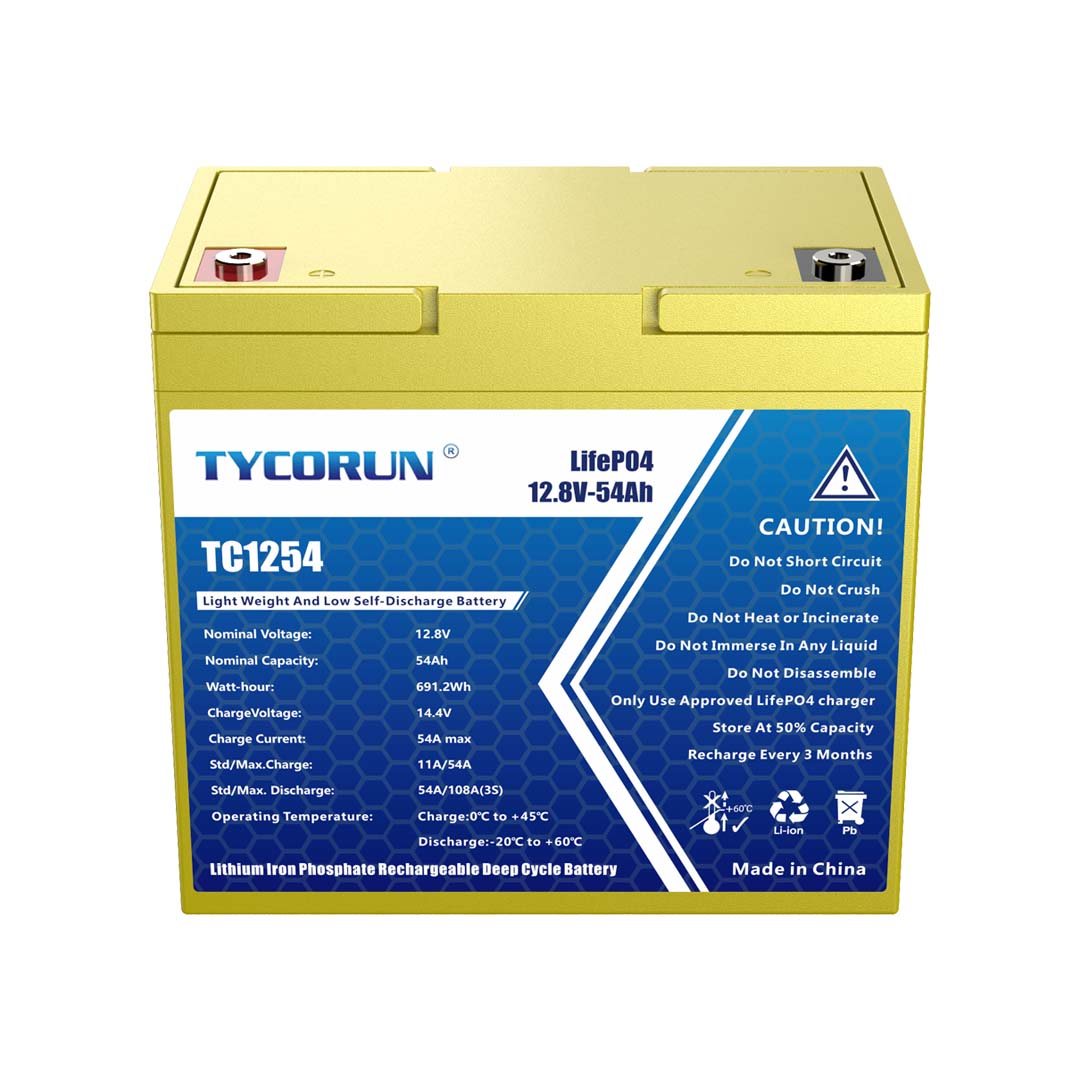

About Tycorun Eco Friendly Lithium Iron Phosphate Battery
Powerful discharge capacity: 12V54Ah lithium battery supports continuous 54A current discharge, with a maximum discharge current of 100A. Can easily drive your load. For low-power devices, lithium batteries can provide at least 2 hours of use time.

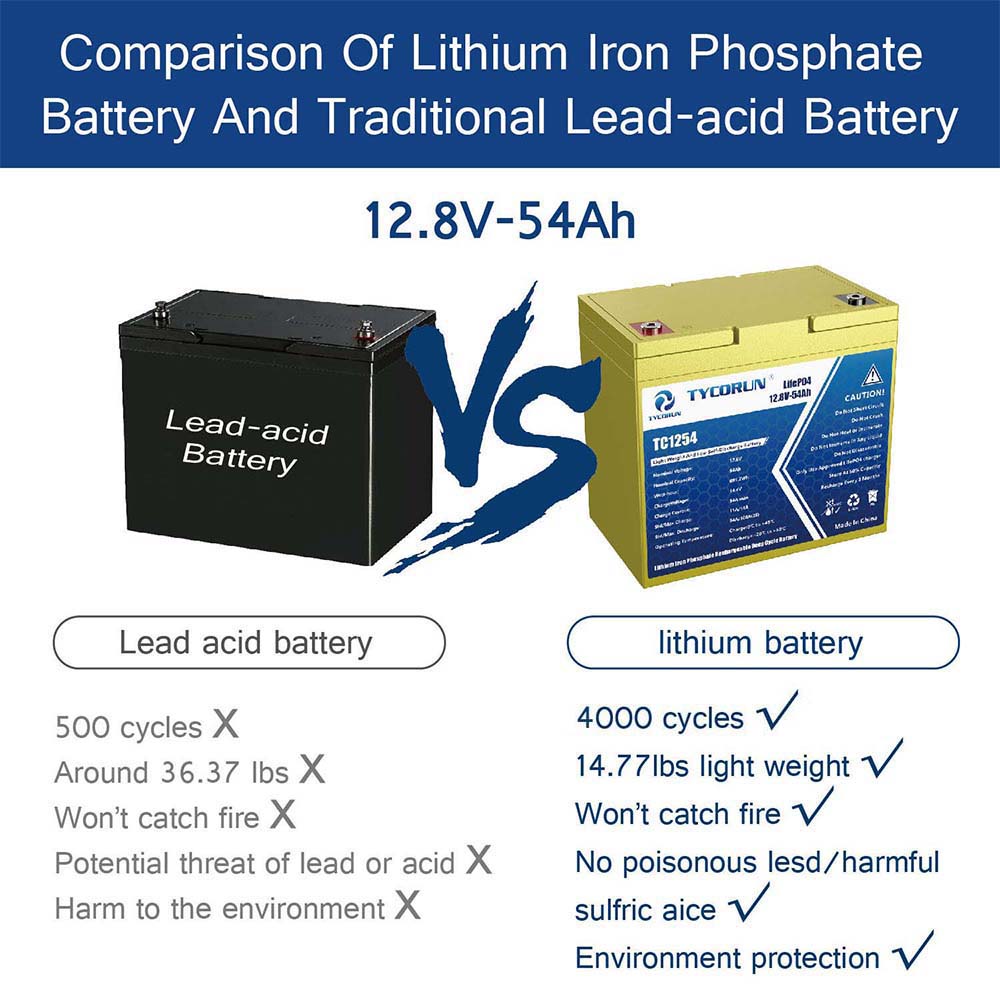

Excellent charging ability: Similarly, the charging current supports 10A charging, which can complete a charging task within 6 hours. Compared with lead-acid batteries, the charging current of lead-acid batteries is small. Under the same circumstances, lead-acid batteries require at least 8-9 hours of charging time. So the lithium battery can save you 3 hours, and you can complete today's task more quickly.
High cycle times: In theory, our lithium battery supports at least 4000 cycles. Let's make a simple calculation. If we complete a charge-discharge cycle a day, the lithium battery can last at least 6 years. But in fact, various situations are often taken into consideration, and the use time will be correspondingly shortened. But compared to lead-acid batteries with a life span of only 300 times, lithium batteries are superior in terms of battery life.

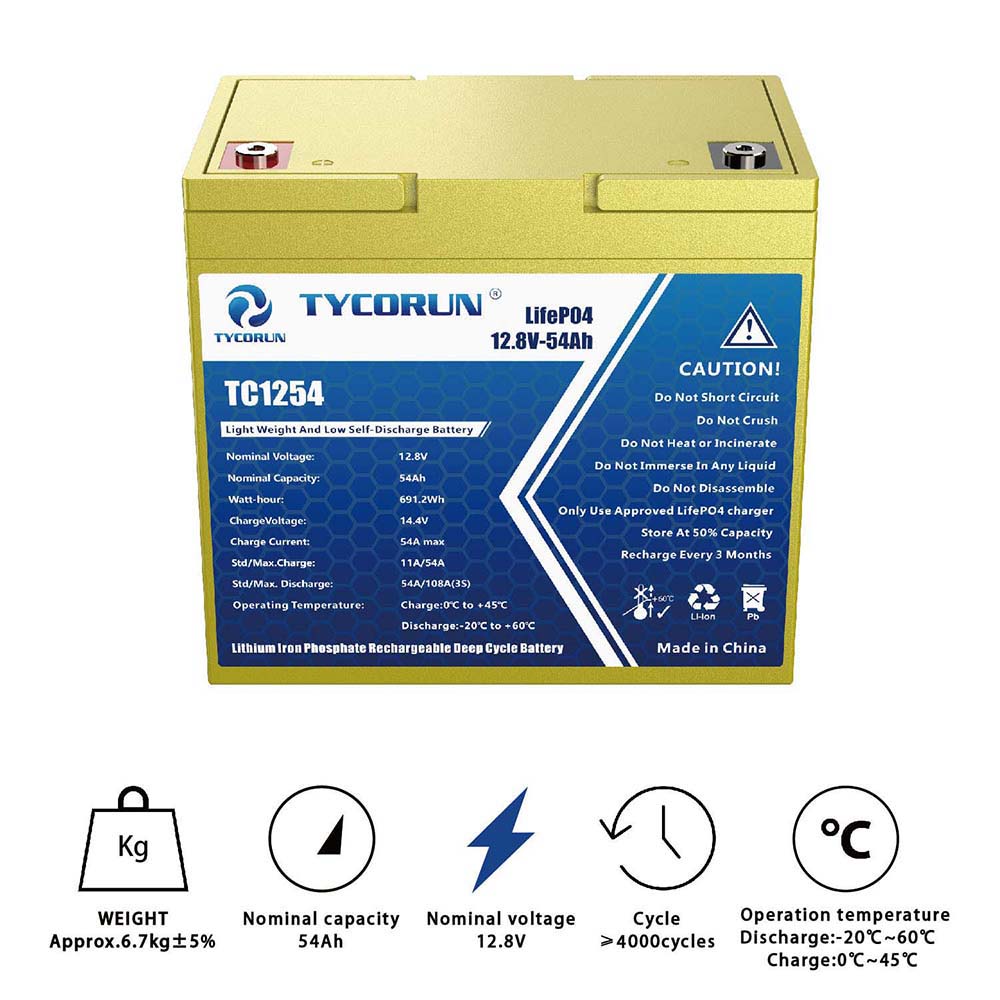

Tycorun 12V 54AH environmental protection lithium iron phosphate battery specifications
| Name |
Tycorun 12V 54AH environmental protection lithium iron phosphate battery specifications |
| Nominal Voltage | 12.8V |
|
Nominal Capacity: |
54Ah@0.2C |
| Energy | 691.2Wh |
| Internal Resistance | ≤60mΩ |
| Cycle Life | >4000 Cycles @ 0.2C Charge/Discharge at 100%DOD,End of Life 70% Capacity. |
| Months Self Discharge | ≤3.5% per month at 25 ℃ |
| Charge Voltage | 14.6±0.2V |
| Charge Mode （ CC/CV ） |
At 0 ℃ ~45 ℃ temperature, charged to 14.6V at a constant current of 0.2C5A, and then,changed continuously with constant voltage of 14.6V until the current was not more than 0.02C5A. |
| Charge Current | 10.8A |
| Max Charge Current | 54A |
| Discharge Current | 54A |
| Max Continuous Current | 81A |
| Max Pulse Current | 162A(<3S ） |
| Disxcharge Cut-off Voltage | 10.8V |
| Charge Temperature | 0 ℃ to 45 ℃ (32 ℉ to 113 ℉ ) @60±25% Relative Humidity |
| Disxcharge Temperature | -20 ℃ to 60 ℃ (-4 ℉ to 140 ℉ ) @60±25% Relative Humidity |
| Storage Temperature | 0 ℃ to 45 ℃ (32 ℉ to 113 ℉ ) @60±25% Relative Humidity |
| Water Dust Resistance | IP65 |

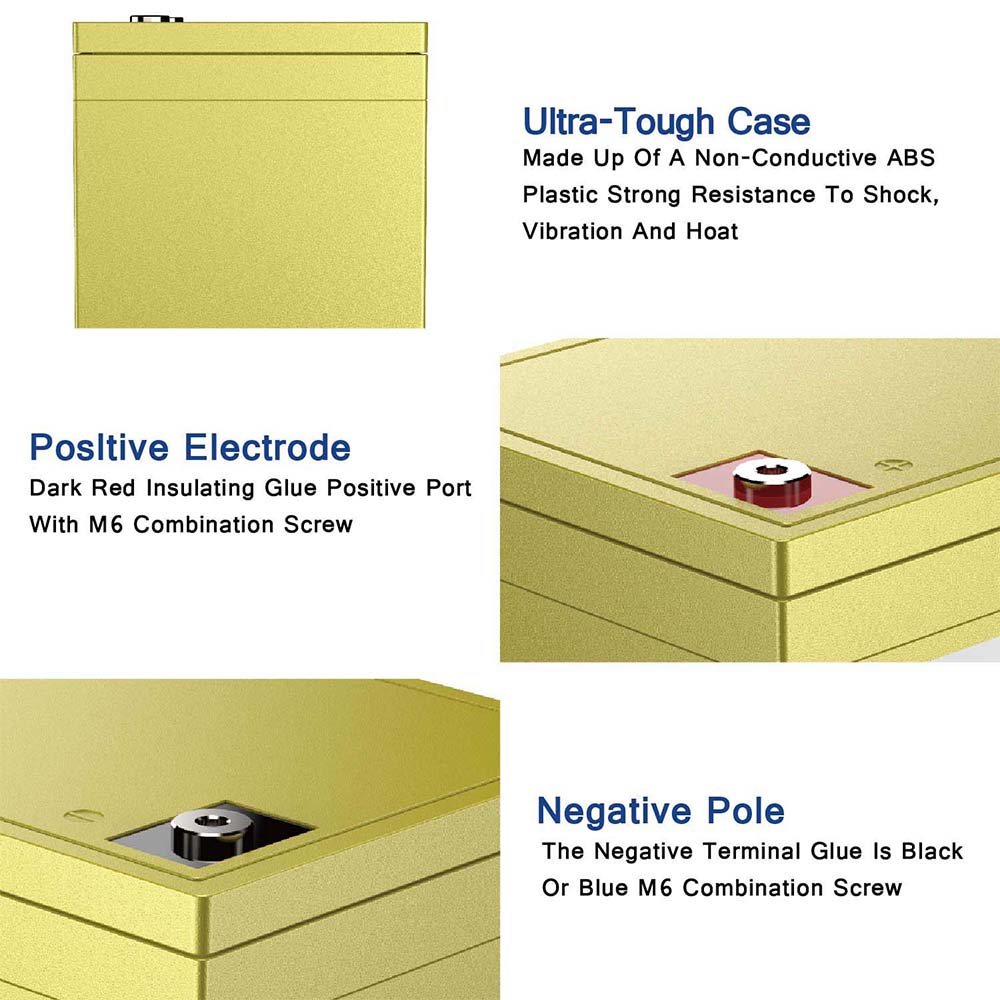

| Plastic Case | ABS |

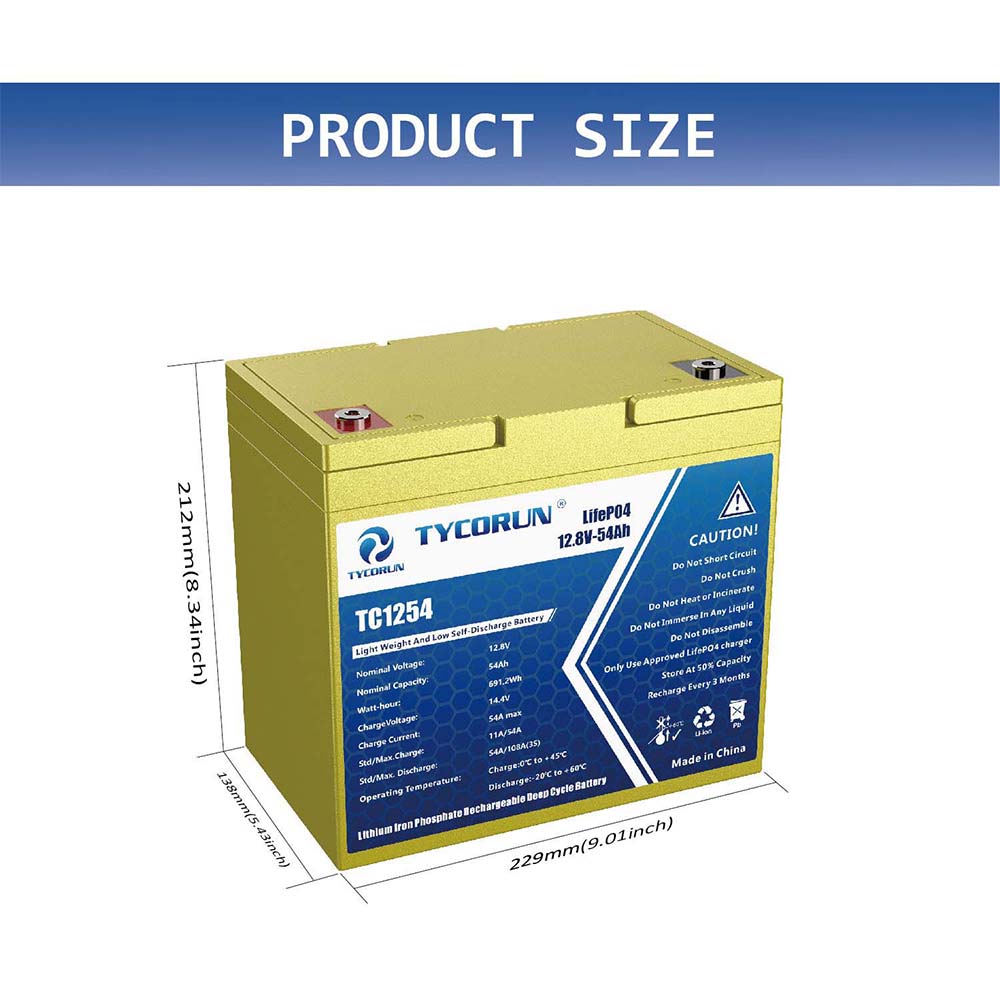

| Dimension(L*W*H) | 229*138*212mm |
| Weight | Approx. 6.7Kg |
| Terminal | M6 |
