About Tycorun 51.2Volt 200Ah Lithium Deep Cycle Wall Mounted Battery
Five advantages will make you like our 51.2V 200Ah lithium ion battery:
Very powerful: fast start-up, powerful discharge capacity, and high-rate instantaneous discharge capacity can easily drive your load.
Long battery life: The natural characteristics of lithium iron phosphate batteries can last three times longer than lead-acid batteries.
Long life: The life of our lithium battery is more than three times that of the traditional lead-acid battery, and it can be used for at least 10 years.
Ultra-safe: Excellent and powerful BMS protection system, providing a variety of protections to ensure the safety of the battery, and at the same time let you use it more confidently
Ultra-lightweight: small size, light weight, easy to use.

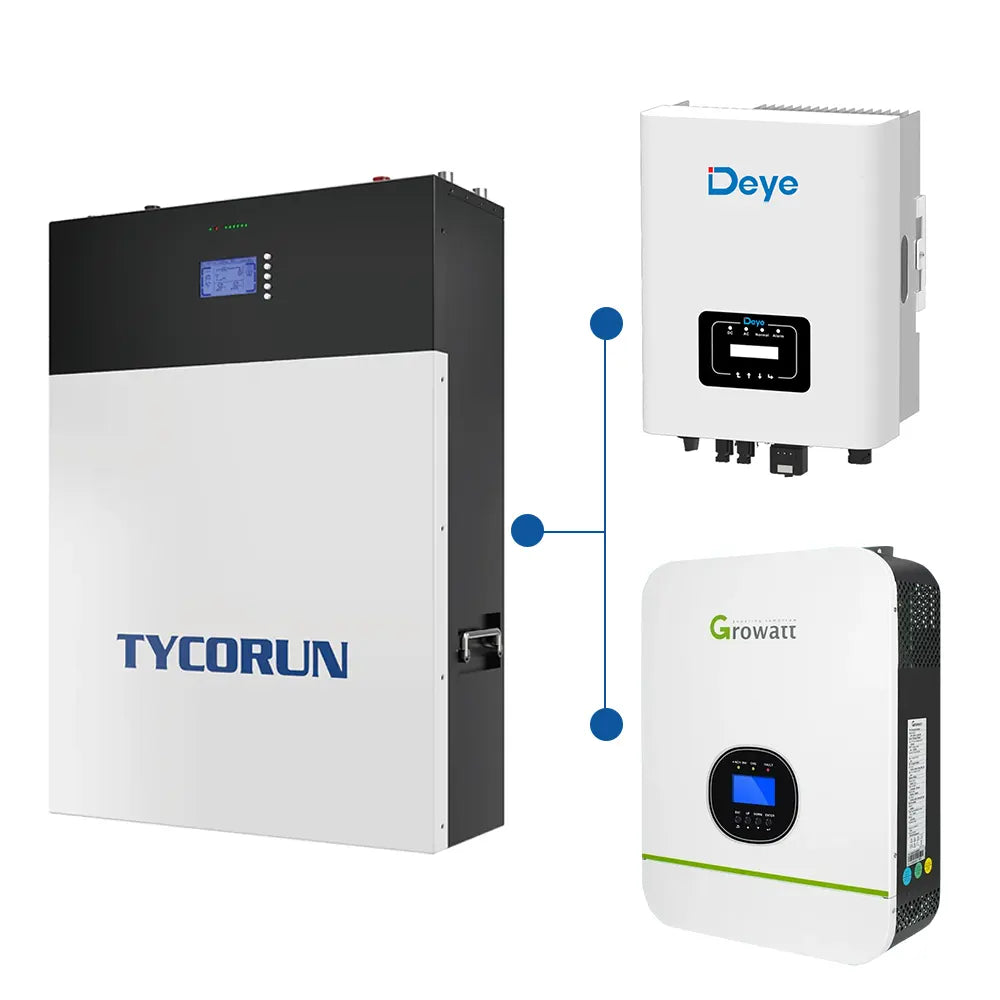

Please noted that this Deep Cycle Wall Mounted Lithium Battery fits deye and growatt inverter.
Tycorun 51.2V 200AH environmental protection lithium iron phosphate battery specifications
Name |
Tycorun 51.2V 200AH environmental protection lithium iron phosphate battery specifications |
Nominal Voltage | 51.2V |
Nominal Capacity: |
200Ah@0.2C |
Energy | 10240Wh |
Internal Resistance | ≤100mΩ (Under 20±5℃ Environment Temperature , the Usage Frequency of Fully Charge( 1KHz) , Use AC Internal Impedance test machine to test) |
Cycle Life | >6000 Cycles @ 0.2C Charge/Discharge at 100%DOD,End of Life 70% Capacity. |
Voltage at end of Discharge |
<=43.2V (Discharge Cut-off Voltage) |
Charging Voltage |
57V |
Max Charging Current(Icm) |
100A (Ampere-meter ,Maximum allowable charging current of the battery pack) |
Limited Charging Voltage(Ucl) |
57.6V (Volta-meter (Serial*3.6V) ,Battery pack safe charging voltage) |
Max Discharging current |
100A (Maximum discharge current allowed by the battery pack) |
Discharge Cut-off voltage(Udo) |
43.2V (Voltage of the battery when the discharge is stopped) |
Charge Temperature | 0 ℃ to 55 ℃ Recommend(25±3℃);≤85%RH storage moisture range. |
Disxcharge Temperature | -20 ℃ to 55 ℃ Recommend(25±3℃);≤85%RH storage moisture range. |
Storage Temperature | -20 ℃ to 25 ℃ Recommend(25±3℃);≤85%RH storage moisture range. |
Plastic Case | ABS |
Dimension(L*W*H) | 680*485*180mm |
Weight | Approx. 90Kg |
