About Tycorun 12 Volt 42Ah Lithium Deep Cycle Battery
Lithium batteries are increasingly becoming a part of household equipment, because they can be used as backup power for household equipment and provide power support when necessary. Since it is used for home equipment, long life must be its biggest advantage, otherwise it is not acceptable to change the battery once a year. As for the service life, under reasonable use, the cycle times of 12V 42Ah lithium ion batteries are basically more than 4000 times. This means that we do not need to consider replacing or maintaining it for a long time.

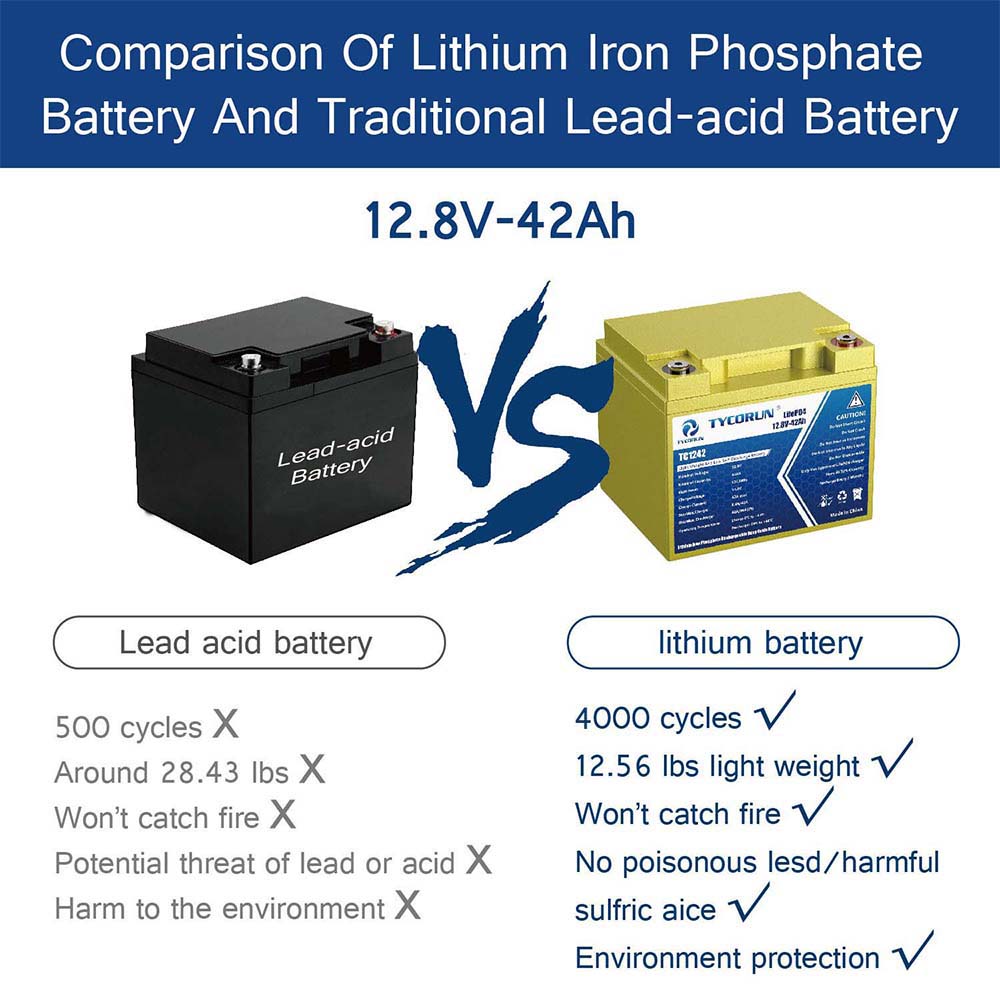

Lightweight, small size, and easy to carry must be another basic advantage of lithium batteries. When it comes to weight, this has to be compared with lead-acid batteries. Under the premise of the same weight, the volume of a lead-acid battery is three times that of a lithium battery. Similarly, in the case of the same volume, the weight of a lithium battery is 1/4 of that of a lead-acid battery. So obviously, when we use direct current outdoors, lithium iron batteries are our only consideration. This will make our journey easy and enjoyable without burden.
Tycorun 12V 42AH environmental protection lithium iron phosphate battery specifications
| Name |
Tycorun 12V 42AH environmental protection lithium iron phosphate battery specifications |
| Nominal Voltage | 12.8V |
|
Nominal Capacity: |
42Ah@0.2C |
| Energy | 537.6Wh |
| Internal Resistance | ≤70mΩ |
| Cycle Life | >4000 Cycles @ 0.2C Charge/Discharge at 100%DOD,End of Life 70% Capacity. |
| Months Self Discharge | ≤3.5% per month at 25 ℃ |
| Charge Voltage | 14.6±0.2V |
| Charge Mode （ CC/CV ） |
At 0 ℃ ~45 ℃ temperature, charged to 14.6V at a constant current of 0.2C5A, and then,changed continuously with constant voltage of 14.6V until the current was not more than 0.02C5A. |
| Charge Current | 8.4A |
| Max Charge Current | 42A |
| Discharge Current | 42A |
| Max Continuous Current | 63A |
| Max Pulse Current | 126A(<3S ） |
| Disxcharge Cut-off Voltage | 10.8V |
| Charge Temperature | 0 ℃ to 45 ℃ (32 ℉ to 113 ℉ ) @60±25% Relative Humidity |
| Disxcharge Temperature | -20 ℃ to 60 ℃ (-4 ℉ to 140 ℉ ) @60±25% Relative Humidity |
| Storage Temperature | 0 ℃ to 45 ℃ (32 ℉ to 113 ℉ ) @60±25% Relative Humidity |
| Water Dust Resistance | IP65 |
| Plastic Case | ABS |

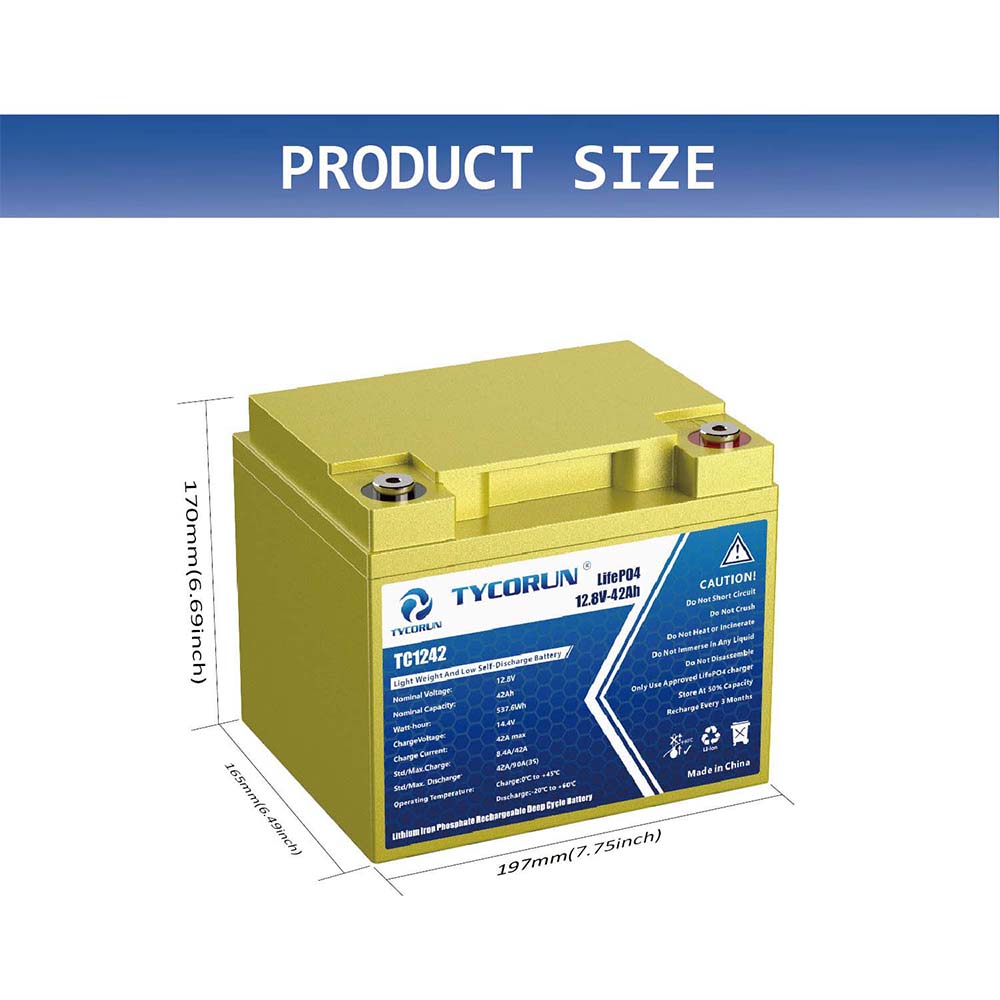

| Dimension(L*W*H) | 197*165*170mm |
| Weight | Approx. 5.4Kg |

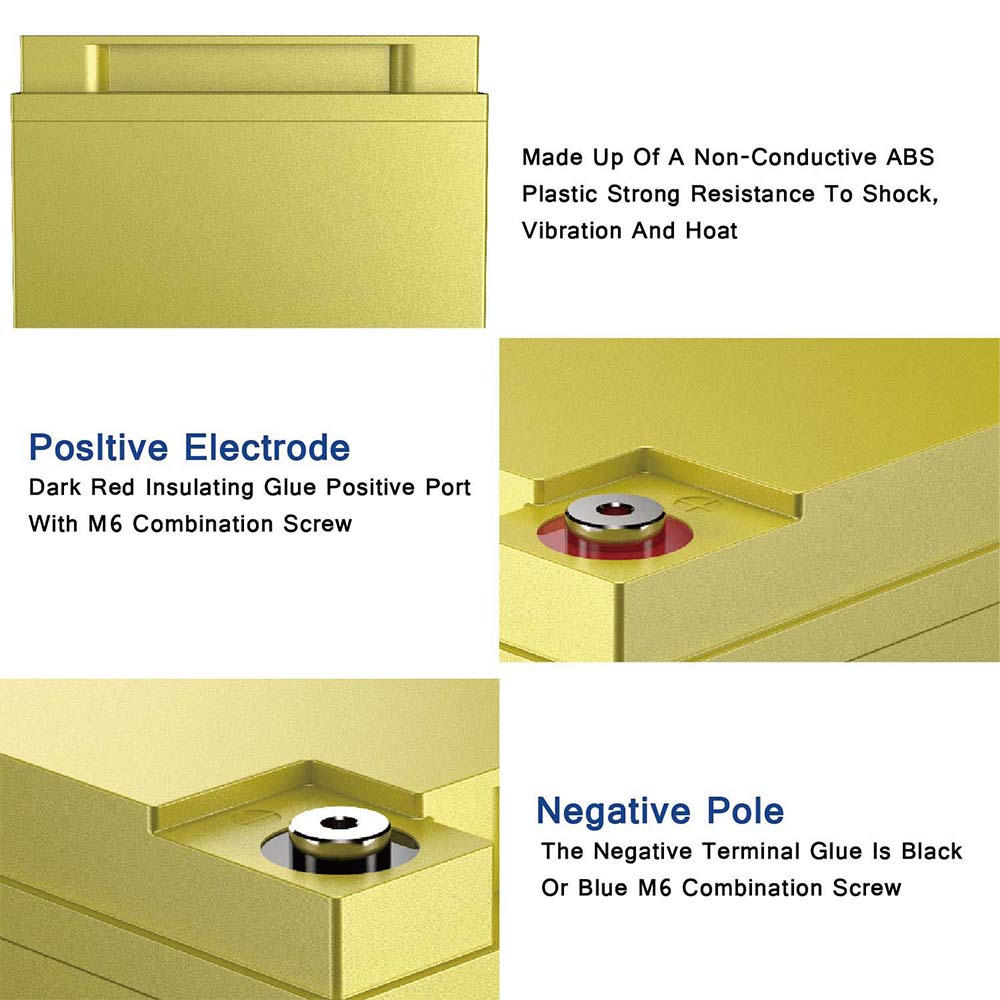

| Terminal | M6 |
