The complexity of an RV’s electrical system arises from the need to provide stable and reliable power within a compact space to meet daily living and travel needs. As a core component of this system, the rv inverter transfer switch plays a crucial role in intelligently switching between different power inputs, ensuring the safe operation of onboard electrical appliances and optimizing energy usage. In an RV's electrical system, it is key to ensuring a comfortable living environment and a safe journey.
What is an rv inverter transfer switch
An rv inverter transfer switch is a device that allows users to switch between different power inputs. When the RV is connected to shore power, the transfer switch can select shore power as the input source to supply the RV’s various appliances. If shore power is unavailable, users can switch to the battery bank or solar panels as the power input. This not only improves the efficiency of power usage but also ensures the proper functioning of electrical appliances under different circumstances.
Functions of the rv inverter transfer switch
Automatic power switching: The rv inverter transfer switch can automatically switch between different power inputs, such as shore power, solar panels, generators, or battery banks, based on availability. For example, when shore power is connected, the system can automatically disconnect the inverter's AC output and directly use shore power to supply the RV’s appliances, improving energy efficiency. The rv inverter transfer switch can prevent power interruptions, which is crucial for sensitive electronics like televisions, computers, or medical devices. It helps avoid data loss or equipment damage caused by sudden power outages.
Protecting electrical appliances: The rv inverter transfer switch includes circuit protection features such as overload protection, short circuit protection, and undervoltage protection to prevent damage to electrical appliances from abnormal currents. For instance, when the inverter battery voltage is too low, the inverter can activate the undervoltage protection circuit, cutting off the output voltage and sounding an alarm to prevent the inverter battery from discharging too much, which could make it impossible to start the engine.
Load management: The rv power inverter transfer switch helps achieve load balancing, ensuring the power system is not damaged by overload. It ensures that critical appliances like refrigerators or air conditioners have priority in receiving power, even when the available power is limited. By properly distributing power, it helps avoid excessive battery discharge, extending battery life, and ensuring that RV appliances receive adequate power.
How to choose the right rv inverter transfer switch
Power compatibility: Ensure that the rv power inverter transfer switch is compatible with your RV’s electrical system, including input voltage and output power requirements. If the inverter transfer switch rv does not match the voltage and power requirements of the RV’s electrical system, it may cause electrical problems such as equipment damage, circuit overload, or even fire. For example, using a rv inverter transfer switch with a rated current lower than what the RV requires could cause the switch to overheat or blow a fuse, impacting safety.
Circuit protection: The rv inverter transfer switch should have overload and short circuit protection to prevent circuit damage or safety incidents. The design of protective circuits in the inverter is very important, including reverse polarity protection, battery undervoltage protection, and overcurrent short circuit protection. These protective measures can effectively protect the inverter and its circuitry. The overcurrent short circuit protection circuit in the inverter is critical to its safety; without it, the inverter could burn out due to overcurrent short circuits.
Ease of installation and use: Choose a transfer switch that is easy to install and operate. A simple installation process can reduce installation time, lower the risk of faults caused by improper installation, and reduce the need for professional installers, saving on installation costs. Additionally, during installation, the inverter should be placed in a well-ventilated, cool, and dry environment, and the manufacturer's instructions should be followed to ensure correct wiring and operation.
Environmental adaptability: Consider whether the transfer switch can adapt to various environmental conditions that the RV might encounter, such as temperature and humidity.

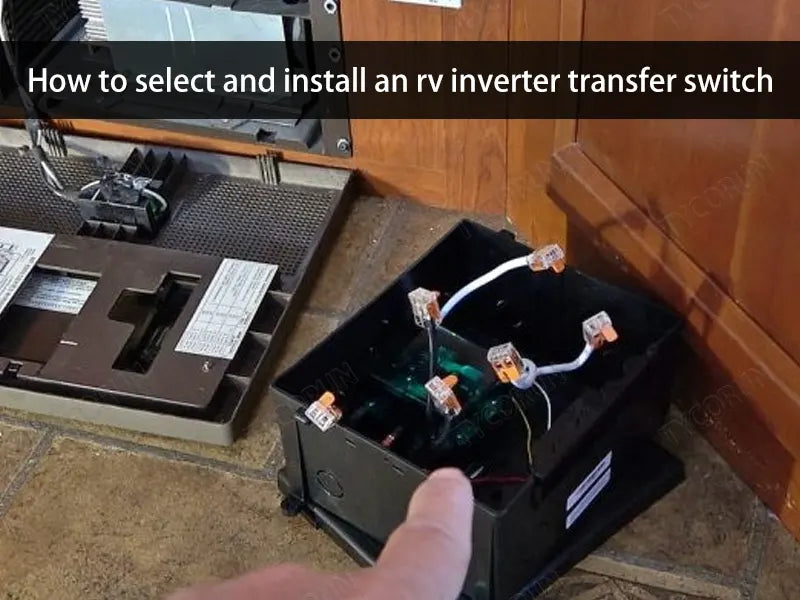

How to install an rv inverter transfer switch
Power down operations: Before performing any electrical work, ensure that all power switches are in the off position, such as the main power switch inside the RV. Use a voltage tester to confirm that there is no current to avoid the risk of electric shock.
Install the transfer switch: After installing the energy storage inverter, install the transfer switch in the distribution box and ensure its rated current is higher than the maximum current in the circuit. For example, if the shore power socket is protected by a 16A circuit breaker, the rated current of the transfer switch should be greater than 16A. Then, securely fasten the transfer switch to the distribution box using screws and other fittings.
Wiring: Follow electrical codes and manufacturer guidance to connect the input terminals of the transfer switch to the output of the inverter and the shore power input. Use appropriately sized wires and ensure all connections are correct, avoiding reverse polarity.
Testing: After completing all connections, conduct a test to ensure the transfer switch functions properly and can switch between different power sources without causing appliance malfunctions. Conduct functional tests one by one, starting with shore power. Switch the transfer switch to shore power mode and check if the appliances operate normally. Then, switch to inverter mode and check if the appliances operate normally, ensuring safe power supply in both modes.
Safety check: Verify that all installation work complies with safety standards, confirming that circuit breakers (such as ground fault circuit interrupters) are correctly installed and functioning. Ensure all wires and cables are away from potential heat sources, reducing fire risks.
How to maintain an rv inverter transfer switch
Regular inspections: Regularly inspect the RV inverter transfer switch visually for signs of damage, corrosion, or other visible wear. Failure to detect these signs in time could lead to reduced performance or complete failure of the device.
Cleaning the inverter: Use a soft brush or dry cloth to gently remove dust and debris from the inverter's exterior and vents to maintain good cooling performance. Avoid using wet cloths or washing to prevent moisture from entering the rv inverter transfer switch and causing damage.
Check connections: Ensure all electrical connections are secure, with no loose or corroded connections. Poor connections can increase resistance, leading to overheating or fire risks. Check for damage or wear on the insulation of wires and cables, which could cause short circuits or arcs. For corroded connections, clean them with a wire brush or other tools and apply appropriate anti-corrosion and conductive grease.
Operating environment: Try to install the inverter in a temperature-stable, dry, and sun-free place, avoiding high temperatures and humid environments. Ensure the inverter and transfer switch are kept away from water sources to prevent electrical faults due to moisture or water ingress.
Conclusion
The rv inverter transfer switch not only improves power usage efficiency and ensures the safety of electrical appliances but also enhances the convenience and comfort of RV living by intelligently managing power inputs. As technology continues to advance, future rv inverter transfer switch will become more intelligent and efficient, providing RV users with a more perfect travel experience.
