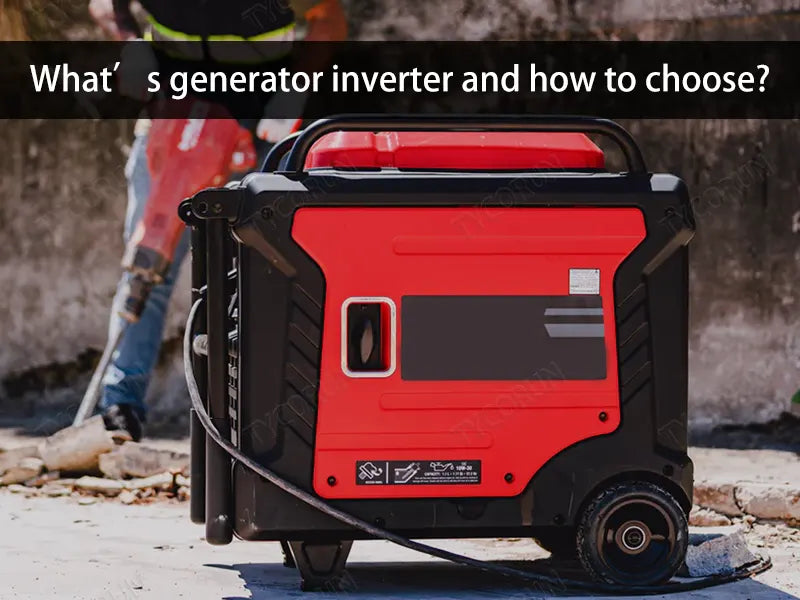

As a crucial component of modern power supply systems, a generator inverter not only converts direct current into alternating current suitable for most devices but also provides stable power support in various applications, including household, outdoor, and industrial settings. This article will help you understand the working principles, types, and application scenarios of generator inverter, as well as what to consider when choosing, using, and maintaining one.
Working principles of a generator inverter
The basic function of a generator inverter is to convert the direct current generated by a generator into alternating current. Since the DC produced by a generator is typically not suitable for direct use by most electrical appliances, it needs to be processed by an inverter. The inverter regulates the input DC, including voltage regulation to ensure that the input voltage is within the inverter's operating range, and removes noise and instability from the DC, ensuring a stable current.
Inside the inverter, there are high-frequency switching circuits, such as MOSFETs or IGBTs, that periodically open and close to form a pulse-width modulation (PWM) signal. By controlling the switching time of the circuit using PWM technology, the inverter generates a square wave signal at a certain frequency.
This square wave signal is then smoothed into a sine waveform using filters, such as LC filters, to produce AC that meets standard waveform and quality requirements. This current can then be used to power household appliances or industrial equipment. The output AC usually conforms to national or regional power standards, such as 220V/50Hz or 120V/60Hz.
In addition to this, generator inverter are equipped with control systems to ensure voltage and frequency stability, adjusting the output voltage and frequency to match load demands. They also have protection features that prevent overload, short circuits, or overheating, protecting both the inverter and the connected devices.
Modern generator inverter often come with monitoring systems that can detect real-time operating status, input and output voltage, current, and other parameters, providing feedback via a display screen or remote system.
Types of generator inverter
Pure sine wave inverters
Pure sine wave inverter output a waveform similar to the utility grid power, making them compatible with most household and industrial appliances, including those with high power quality requirements, such as computers, TVs, and audio systems.
They effectively reduce interference, enhance the stability and lifespan of appliances, and provide more stable power output, reducing power loss and improving equipment efficiency. For high-precision devices or those requiring special power quality, pure sine wave generator inverter provide a stable power supply that better meets these needs, such as in medical equipment or precision instruments.
Modified sine wave inverters
Modified sine wave inverter produce a waveform that is more step-like compared to a pure sine wave, which is less smooth and regular. This can cause some devices to run unstably, potentially generating electrical noise, affecting normal operation, or even leading to equipment malfunction or reduced lifespan.
They are not suitable for high-end appliances or devices with strict power quality requirements, such as certain precision instruments or audio systems, and may result in lower operational efficiency. However, they are more cost-effective due to lower production costs.
Square wave inverters
Square wave generator inverter output a current waveform with sharp edges that differ significantly from an ideal sine wave, creating substantial electrical stress on appliances. They have poor compatibility with appliances, making them suitable only for simple devices like light bulbs or fans.
For complex devices or those requiring high power quality, square wave inverters may cause damage or operational instability. The sharp waveform may generate significant electrical interference, increasing the risk of equipment failure. Square wave inverters also have lower power conversion efficiency, leading to energy waste and higher operating costs, along with increased noise and heat.
Application scenarios for generator inverter
Home backup power: During power outages, a generator inverter can convert generator power into stable electricity for household appliances, ensuring the normal operation of lighting, home appliances, and other essential devices.
Outdoor camping and travel: Generator inverter are highly practical for outdoor activities, providing power for camping equipment, lighting, cooking appliances, refrigerators, and other small household devices.
Construction and job sites: In construction sites without grid power, a generator inverter can supply stable electricity for power tools, lighting equipment, and other construction devices, ensuring smooth workflow.
Boats and RVs: On boats and RVs, generator inverter provide clean, stable power for navigation equipment, communication devices, and onboard household appliances.
Considerations when choosing a generator inverter
Power output
Determine the required power output and ensure the generator inverter can support all the devices that need power. Calculate the total power demand and select an inverter with a capacity slightly above this requirement. Also, consider peak power, as some devices may have brief power surges during startup (e.g., refrigerators, power tools). Ensure the inverter can handle these peak demands.
Fuel type and efficiency
Generator inverter typically run on gasoline, diesel, natural gas, or propane. Choose a fuel type that suits your usage environment and budget. Higher fuel efficiency means longer run times and lower operating costs, especially important for long-term use or emergencies.
Portability
If you need to use the generator inverter in various locations, portability is an important factor. Lighter models are better suited for outdoor activities and applications requiring frequent movement. Consider whether the inverter's design includes features that make it easy to carry, such as handles or wheels, which greatly facilitate mobility.
Noise level
Low-noise generator inverter are better suited for camping, residential areas, or other noise-sensitive environments. Choosing a model with lower decibel levels helps minimize disturbance.
What to consider when using a generator inverter
Ventilation: Use the generator inverter in a well-ventilated area, away from enclosed spaces. Emitted exhaust gases, especially carbon monoxide, can be harmful or even fatal. Also, keep the inverter dry; avoid using it in rainy or damp conditions. If outdoor use is necessary, ensure proper protective measures, such as a waterproof cover or shelter. Keep the generator away from gasoline, paint, and other flammable materials to reduce fire risk.
Proper grounding: Ensure the generator inverter is correctly grounded to avoid the risk of electric shock. When selecting cables, use appropriate ones for the load, ensuring that the cable's power-carrying capacity is sufficient for the connected devices. After connection, regularly check the cables and connections for tightness and wear, preventing fire or short circuits. Avoid overloading the generator inverter, as this could cause it to overheat or damage the connected devices.
Fuel management: Use the recommended fuel type to avoid damaging the engine. Regularly check fuel levels and refill as needed to prevent running out of fuel during operation. When refueling, ensure the generator is turned off and cooled down to avoid fire hazards. If storing the generator for an extended period, empty the fuel tank and treat the fuel with a stabilizer to prevent fuel degradation.
How to maintain a generator inverter
Regular oil changes: It's generally recommended to change the oil within 20-30 hours of initial use, and then every 50-100 hours or every three months, depending on usage frequency and environment. Oil forms a film between the moving parts inside the engine, reducing direct metal-to-metal contact, minimizing wear, and extending engine life.
Clean or replace the air filter: Check the air filter every 50 hours or every three months. If used in dusty environments, inspect and clean it more frequently to remove impurities generated during the break-in period. Clean the filter using clean compressed air or wash the filter element with warm water and mild detergent. After the filter element is completely dry, reinstall it or replace it with a new one if necessary.
Fuel system maintenance: Inspect the fuel lines and filter regularly for cracks, aging, or other issues, and replace the fuel line as needed. Clean or replace the fuel filter to ensure smooth fuel flow. To prevent fuel degradation, if not using the generator for a long time, it's recommended to drain the fuel tank or add a fuel stabilizer.
Cooling system checks: Regularly inspect and clean the generator inverter’s cooling fins and ventilation openings to ensure inverter cooling system are free from dust, grease, or other debris that could obstruct airflow, maintaining good cooling efficiency. Check coolant levels and add or replace coolant as needed.
Conclusion
Generator inverter play a critical role in various scenarios, providing stable power output and ensuring equipment operates efficiently. Choosing the right model, paying attention to safety during use, and maintaining the generator inverter properly will directly impact its reliability and lifespan.
