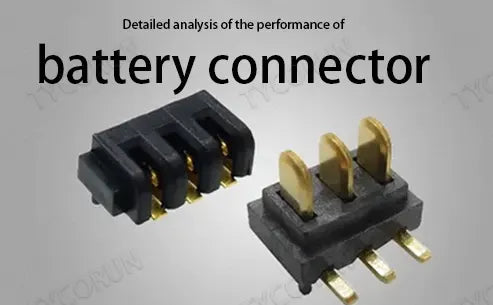

1. What is a battery connector
A battery connector is a device that connects a battery to other devices, allowing the batteries to provide or charge power and transmit power to other devices.
Battery connector often have a pluggable design that allows the batteries to be easily inserted and removed without causing damage to the batteries.
Battery connectors are widely used in a variety of devices and also home energy storage, including mobile devices, power tools, aerospace vehicles, medical equipment, automobiles, and other vehicles. Battery connectors come in a variety of types and shapes to suit the needs of different devices and applications.
2. How the battery connector works
Based on the charge flow in the circuit and the establishment of potential difference. When the battery connector completes battery hookup, a potential difference, that is, the voltage, is generated inside the battery.
The magnitude of the potential difference depends on the chemical reaction of the battery and the electrochemical potential of the battery. Typically, the potential difference between the cathode and anode of a battery is a few volts.
When the battery connector is connected to an electronic device, the potential difference causes electrons to flow from the anode of the battery to the cathode, through the conductor or line in the connector, and into the circuit of the device. This electron flow is the current.
The magnitude of the current depends on the number of electrons and the speed of flow. The current can be calculated using Ohm's law, which states that the current is equal to the voltage divided by the resistance. In a battery connector, current is transmitted through a metal conductor or wire through the connector's plug or pin.
The design and manufacture of battery connectors must take into account factors such as the conductor material and size of the connector, the shape and size of the plug and pin, and the safety and reliability of the connector to ensure the efficiency and stability of current transmission.
3. The type of battery connector
It can be classified according to aspects such as connection method, shape and size. Here are some common types of battery connectors:
● Plug connectors
It usually consists of two or more plugs, one of which is connected to the cathode of the batteries and the other plug is connected to the anode. The plug can be a slot that plugs directly into an electronic device, or it can be connected by wires and other components.
● Bayonet connectors
Connection is made via bayonet and connector. The bayonet can be spring-loaded, latched or clip-on for good plugging performance and stability.
● Pin connectors
It usually consists of two or more metal pins, one of which is connected to the cathode of the battery and the other pin is connected to battery anode. Such connectors are often used in small electronic devices.
● Panel connectors
It consists of a plurality of metal plates, one of which is connected to the cathode of the batteries and the other to anode. Such connectors are typically used when high current transmission is required. device.
● Magnetic connectors
This type of connector uses magnetic force to connect batteries and electronic devices, is convenient and fast, and is commonly used in charging and mobile devices.
● Hot-swappable connectors
With pluggable electrodes and connectors, the device can be plugged and unplugged while it is running without affecting the proper operation of the device. The above are some common battery connector types, and different application scenarios need to choose different connector types to meet the requirements of battery connector current, voltage, durability and ease of use.
It should be noted that if the polarity of the connector is not connected correctly, it may cause damage to the device or drain the battery too quickly. Therefore, before proceeding with the wiring, it is necessary to check the polarity of the connector and ensure that the cathode and anode of the battery are connected correctly.
At the same time, it is necessary to ensure that the contact surface of the connector is clean to ensure the efficiency and stability of current transmission.
● About the battery connector shrapnel
Battery connector shrapnel is an important component of battery connector, commonly used for connector insertion and removal. Shrapnel is usually made of spring steel sheets, which have good toughness and elastic deformation ability, which can provide pressure and resistance when inserting and pulling connectors.
4. Design of battery connector
Battery connectors have different requirements and standards in different applications. A battery connector is an electronic component that typically consists of two or more metal plugs that can be inserted or connected to cathode and anode of a battery to transfer electrical energy into a circuit.
The selection of battery connector must take into account factors such as current capacity, connection method, durability and ease of use. Battery connector can be used in a variety of electronic devices such as mobile phones, laptops, cameras, and radios, among others. The role of the battery connector is to transfer the battery's electrical energy to other electronic devices for power or charging.
Battery connector usually consist of two or more metal plugs, one of which is connected to the battery cathode and anode and the other plug is connected to the anode of the batteries, so that electrical energy can be transferred to the circuit.
Electronic devices often require battery connector of specific types and specifications to ensure that the connectors are capable of delivering the required current and voltage and are of the appropriate size and shape to accommodate the design and construction of the device. Battery connector specifications may include:
● Size and shape
Conforms to the size and shape of the connected device to ensure proper connection and plugging.
● Connection method
Different connections are available, such as plug, pin or bayonet connections.
● Material and appearance
It can adapt to the environment in which the connected device is used, such as high temperature resistance, waterproof or dustproof, etc. This can be selected according to the specific application and equipment requirements.
5. The function of the battery connector
The main function of the battery connector is to provide reliable power connection and transmission while guaranteeing safety and long life. The design of battery connectors typically requires consideration of the following aspects:
● Current and voltage
Understand the required knowledge to ensure the stability and safety of power transmission.
● Reliability
It has a reliable connection and disconnect function to ensure the stability and long life of the connection.
● Protection
Protect batteries and other equipment from short circuits, overloads, and other electrical faults.
● Durability
Ability to withstand long-term use and harsh environments to ensure long-term reliability and performance.
6. Application and characteristics of energy storage connector
● Energy storage connector design
Energy storage battery connectors have the characteristics of high temperature resistance, voltage resistance, chemical corrosion resistance and high clarity. It has the characteristics of high reliability, accurate positioning, low noise and vibration, strong impact resistance, easy installation and high reliability, making it widely used in various power systems with high requirements.
Fine workmanship, high strength, stable quality, good protection effect, good ventilation, high temperature resistance, safety and reliability, voltage resistance and other characteristics, can greatly shorten the replacement fixing time, and easy to disassemble.
● Application scenarios of energy storage connectors
Energy storage battery connectors can be used for wiring energy storage systems, energy storage batteries, lifepo4 battery, solar energy storage systems, and various other energy storage devices. Energy storage battery connectors can be used in ships, automobiles, electric vehicles, and other fields.
7. Conclusion
Battery connectors have a safe and reliable connection and have proper insulation and protection against electrical hazards. Able to withstand the harsh conditions of energy storage systems, easy to install and maintain, its design is simple and intuitive.
