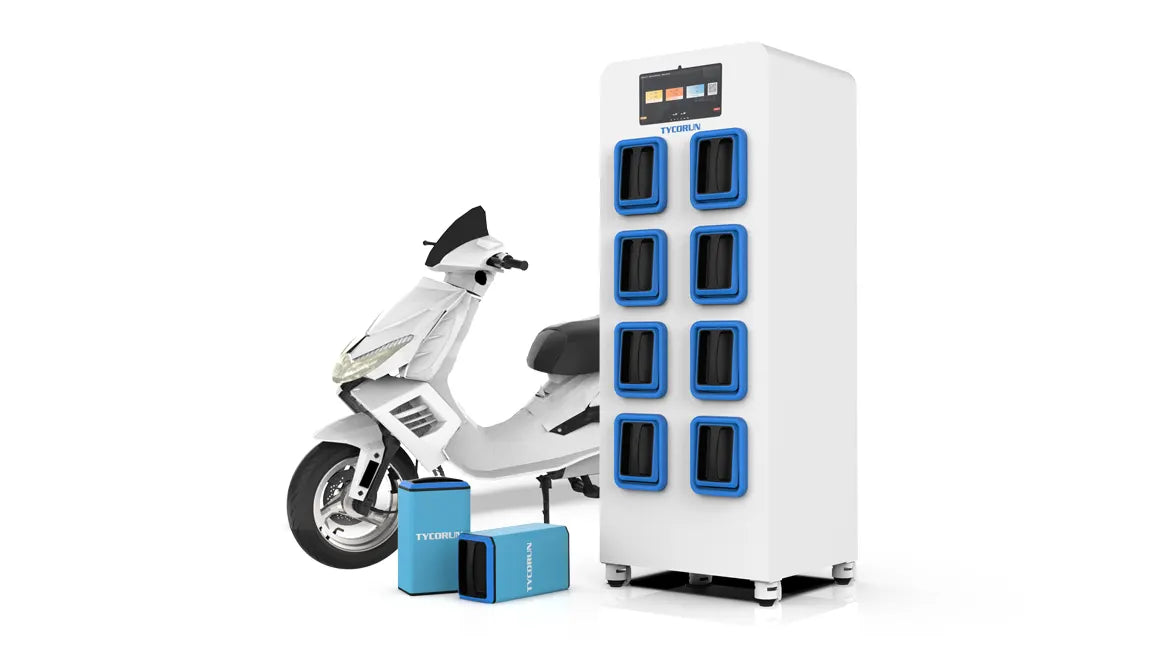

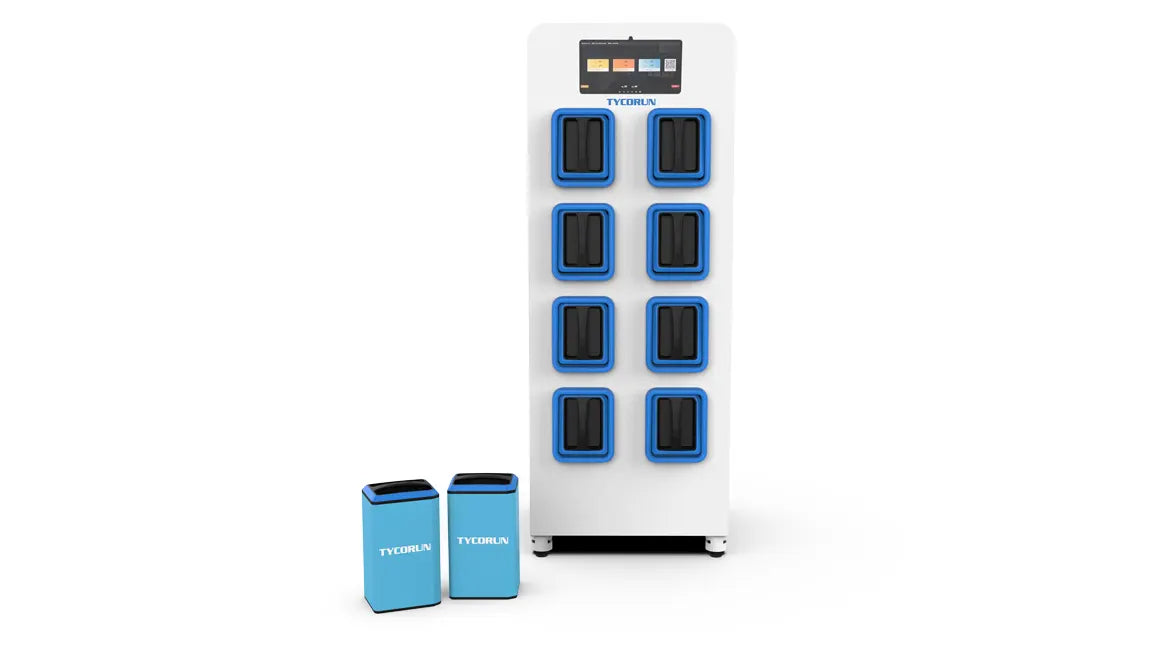

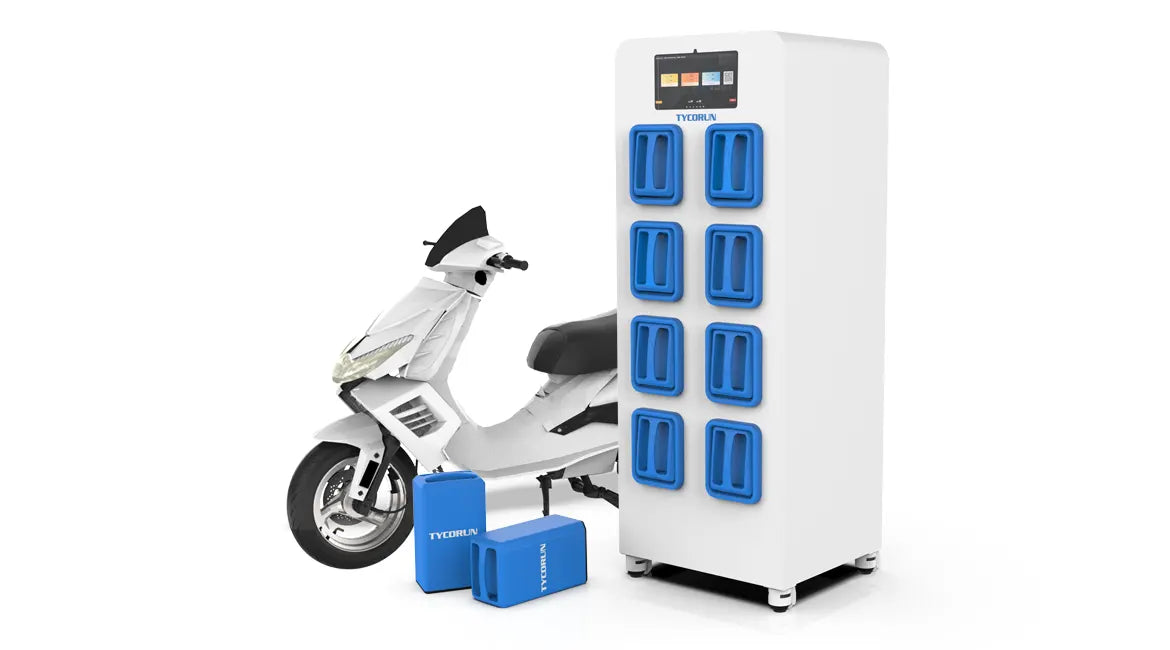

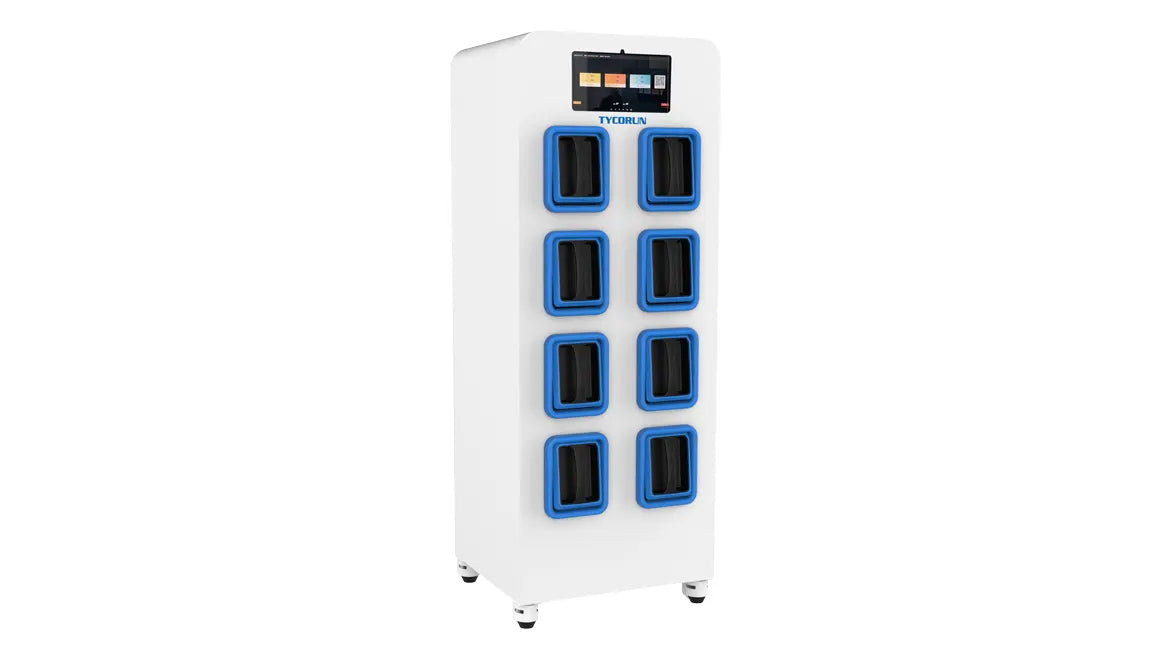

The TYCORUN 8-slot battery swapping cabinet is a swapping battery station for electric motorcycles/scooters where their depleted batteries may be exchanged for fully charged ones, provideing convenience for riders. This TYCORUN 8-slot battery swapping cabinet allows riders to continue their journey without waiting for the motorcycle to recharge or find a charging station.
Features of TYCORUN 8-slot battery swapping cabinet:
- The battery packs used in this swapping cabinet is Samsung-29E battery cells.
- The battery module contains a 4G module and a GPS positioning system.
- The batteriescan be monitored and controlled remotely through background management system.
- The batteries are suitable for individual rental or sale, and can be charged on a basis of days, months or number of times.
- The background management systemcan identify the battery SOC and pop out the fully charged ones for use.
- This 8-slot battery swapping cabinet is suitable for 48/60v/72v batteries according to customer requirements.
Specifications of TYCORUN 8-slot battery swapping cabinet |
|
Dimension |
Required Parameters |
Swapping method |
Plug in, authenticate, take out - QR code required on the screen |
Number of slots |
8 slots |
Total dimension |
600 x 560 x 1682mm |
Battery dimension |
171*126*330mm |
Roller inside slots |
Yes |
Input volt |
180-380Vac |
Output voltage (slots) |
48/72Vac |
Max power per slot |
900W |
Max power allowed for 1 station |
6500W |
Side slant of equipment |
5 degrees |
Locking mechanism |
OK |
Door materials |
Metal |
Door hinge |
Metal |
Camera |
Yes |
Rain cover |
Yes |
IP level |
IP 44 |
Wheels |
Universal wheel with locks 4" |
Dynamic charging - Can change charging algorithm |
Yes for each slot |
Remote charging control |
Yes, via software |
Internet requirement |
Can run without internet, bluetooth connection to user device if required |
UPS availability |
UPS availabile in rack for 2h backup |
Speaker |
Yes for notifications, customizable basis required inputs (will be further detailed) |
Overcurrent protection |
Yes |
Overvoltage protection |
Yes |
High temperature detection |
Yes |
Data storage |
Yes |
Communication capability (backend) - IoT |
Yes, have capability to share data via internet |
User authentication |
Yes |
Battery communications |
CAN |
LCD screen |
13 inch |
Firmware updateable |
Firmware can be updated remotely |
