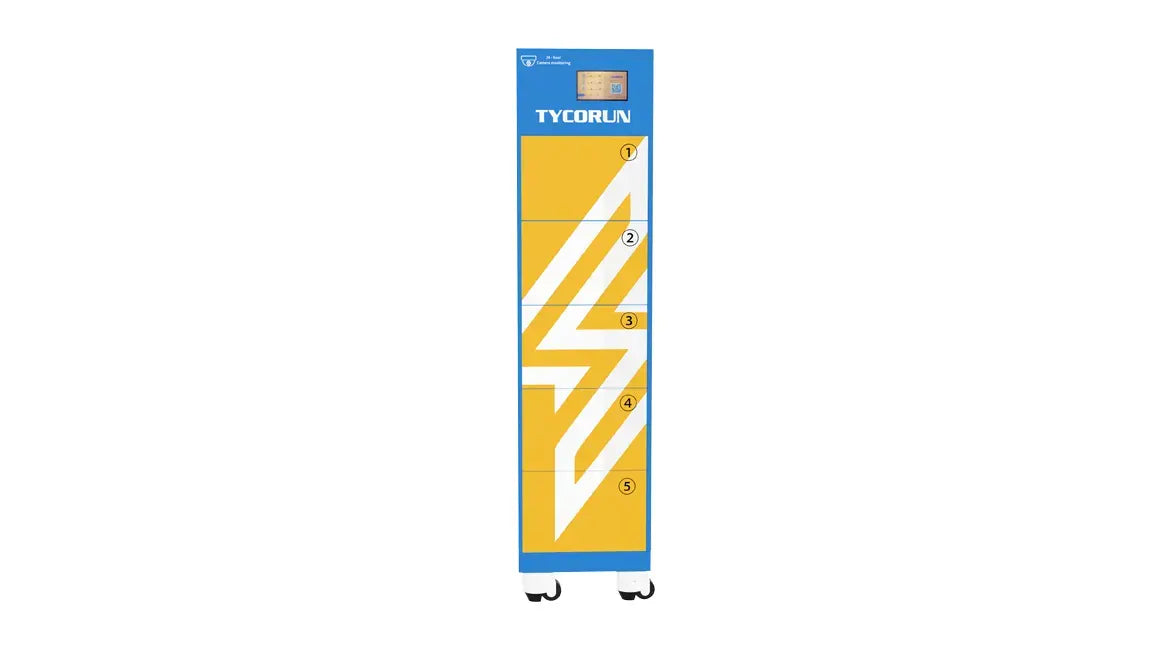

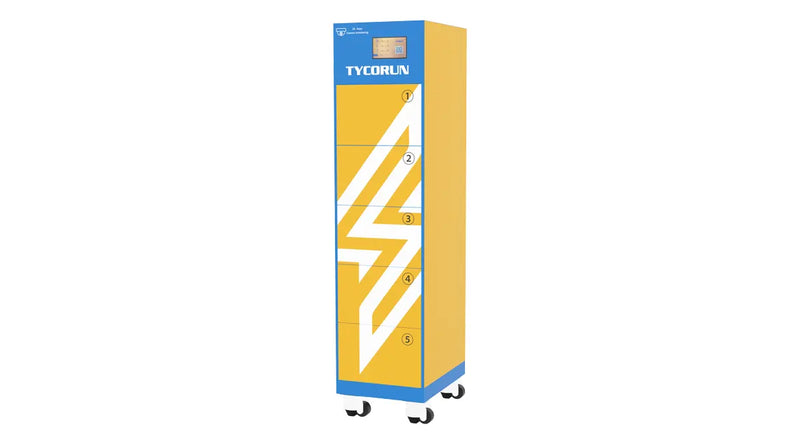

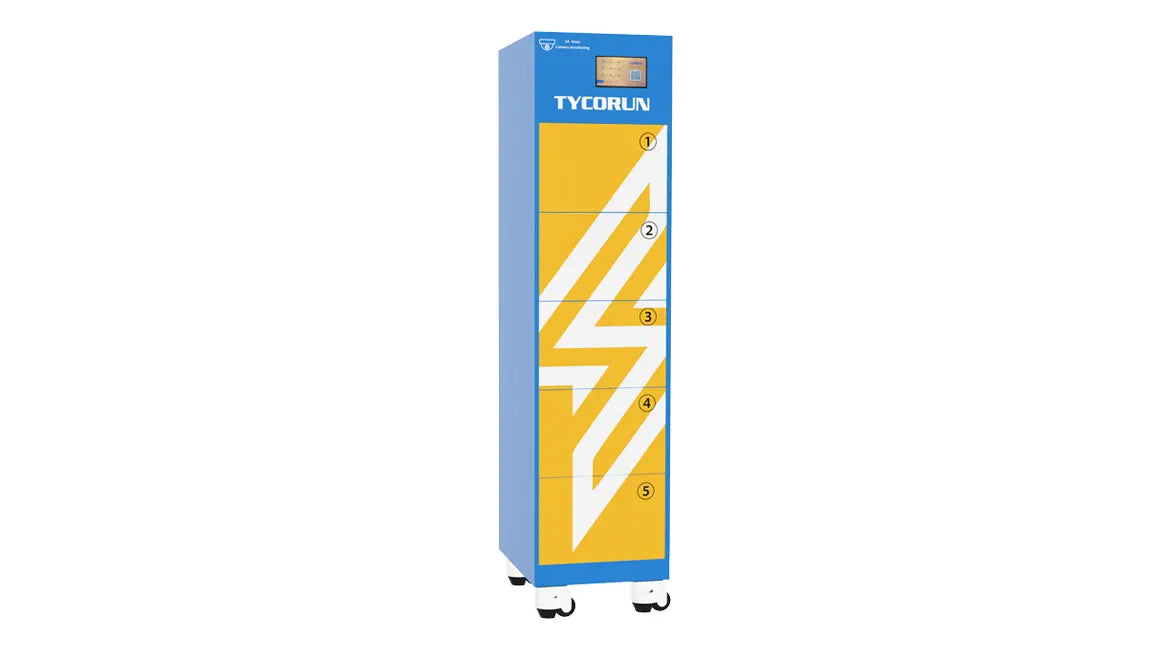

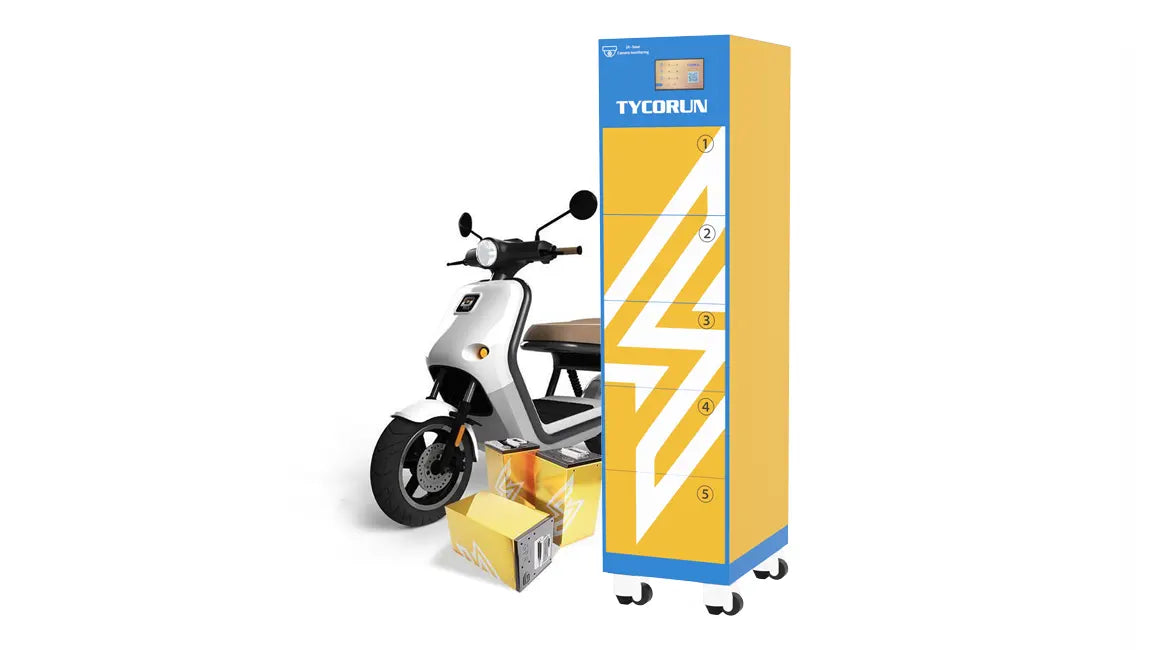

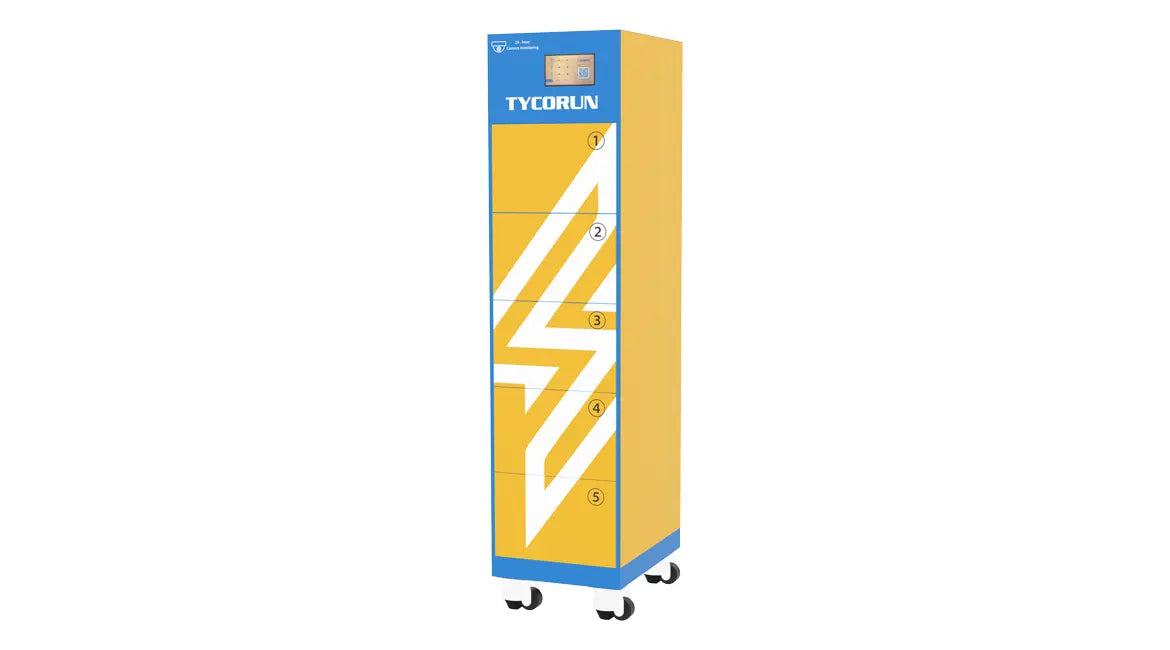

The TYCORUN 5 ports battery swap station is a facility with 5 slots that allows you to quickly replace your discharged batteries from electric bike or motorcycle with fully charged ones, without having to wait for hours to recharge them. When people need to swap their electric bike or motorcycle batteries, TYCORUN 5 ports battery swap station is a convenient option.
Features of TYCORUN 5 ports battery swap station:
- Modular designto ensure flexible configuration.
- Dynamic safety fast charge, automatic monitoring and allocation, 24hbig data monitoring, guaranteeing high safety.
- Support intelligent functions, such as remote control, OTA upgrade.
- Smaller area occupation, suitable for 72V/60V/48V charging.
- Support customizeddesign, such as logo, appearance, rainshed, camera, etc.
- Suitable for electric motorcycle, e-bike, electric scooter and other two/three-wheeled electric vehicles.
TYCORUN 5 ports battery swap station WARNING:
- Please read the warning terms carefully before the test, because when the lithium-ion battery is not used properly, it may lead to battery failure, electrolyte leakage, heating and even fire.
- When charging and discharging the battery, please use the test equipment specially designed for lithium-ion battery, and do not use ordinary constant current and constant voltage (CC/CV) power supply. These can not play a protective role in case of overcharge or over discharge of the battery cell, which may lead to functional failure or danger.
- Do not disassemble the battery unless it is disassembled by the after-sales service personnel of the battery manufacturer.
- It is forbidden to knock, throw or step on the battery, and it is forbidden to put the battery into a high-pressure container.
Specifications of TYCORUN 5 ports swap station:
Model |
TCBSS-5slots |
Cabinet size |
400(W)*450(L)*1530(H)mm |
Chamber size |
260(W) *420(L) *200(H)mm |
Chamber quantity |
5slots (individual control) |
Battery communication method |
RS485, CAN |
Touch screen |
5 inch (standard) |
Input voltage |
100~240VAC 50HZ |
Input power |
3200W |
Max power per bin |
900W |
Operating environment |
Altitude≤3000m, 0~55℃ |
Protection |
Lightning protection / dustproof and waterproof IP54 / water immersion power-off protection |
Battery health diagnosis |
Standard, need battery BMS support |
High temp detect |
Standard, background warning function |
Remote monitor |
Standard(Diagnose, manipulate online) |
Chamber indicator |
Standard (3 colors LED) |
Communication |
Standard 4G/WIFI, optional GPS/BT |
Swapping method |
Scan QR / reservation / off line-swapping |
Camera |
Optional (outside with shelf) |
Rainshed |
Optional (metal sheet with Painting) |
Distinguisher |
S type aerosol |
Appearance |
Can be customized according to customer needs |
