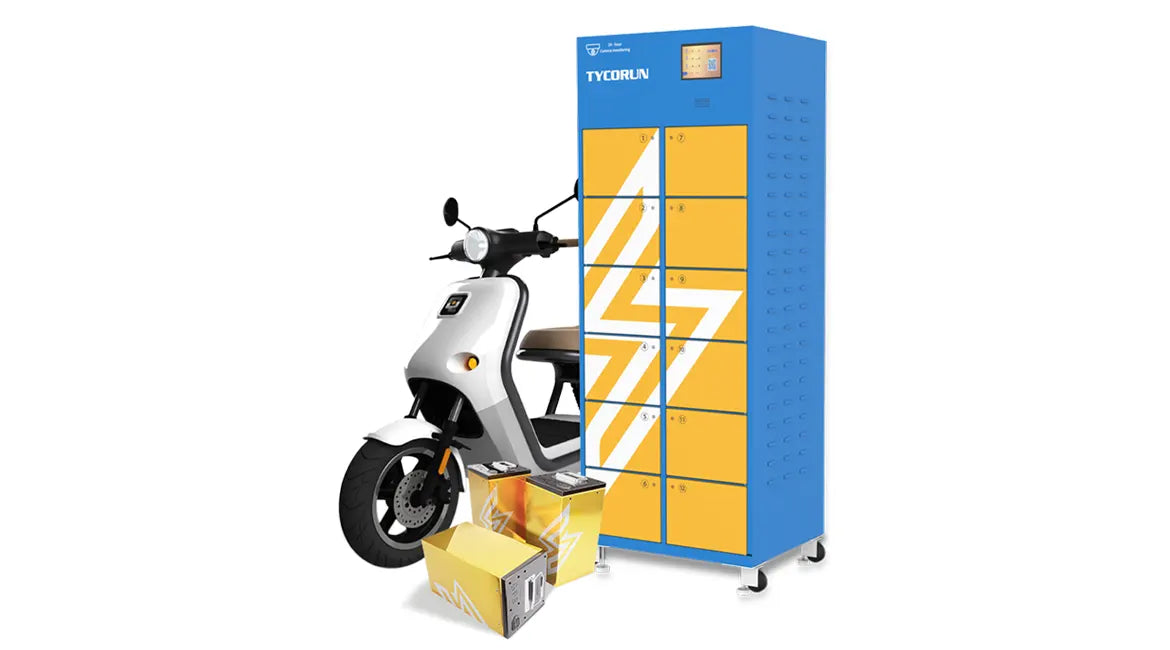

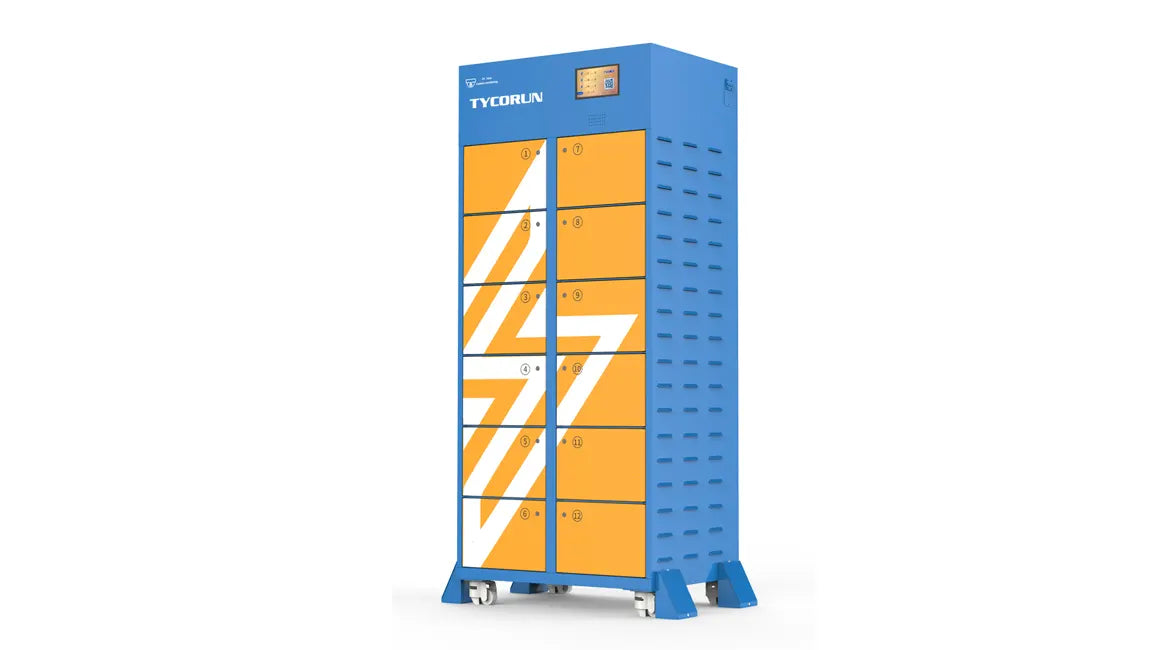

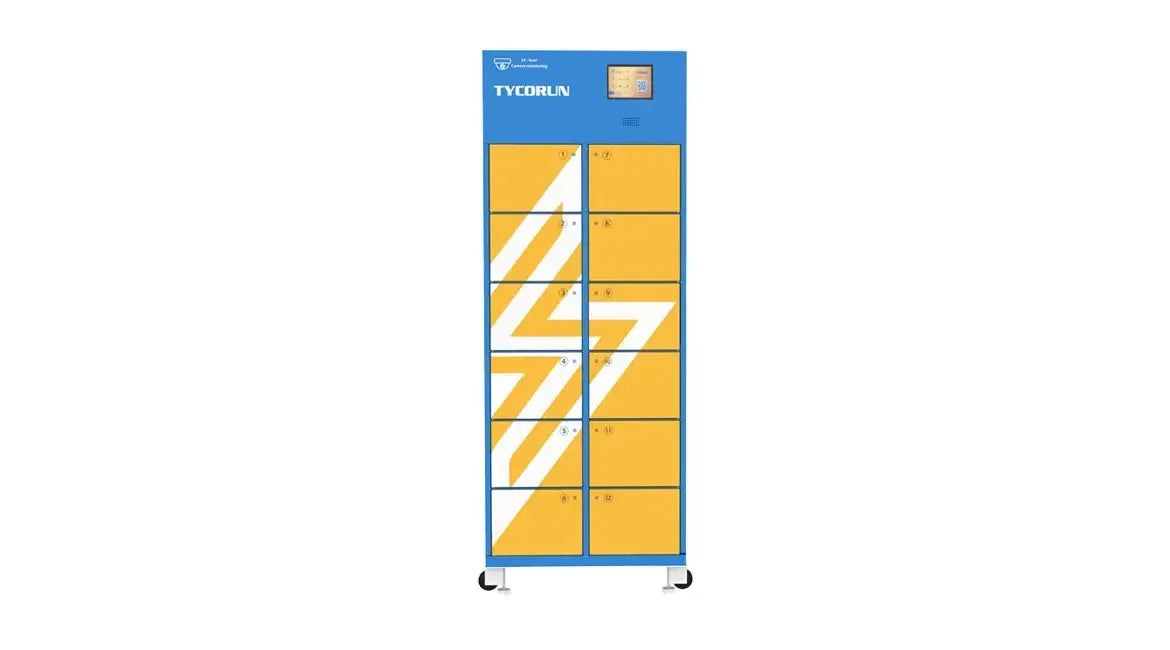

OEM/ODM TYCORUN 12 ports battery swap station for electric motorcycle, scooter, tricycle
The TYCORUN 12 ports battery swap station is a facility with 12 slots that allows you to quickly replace your discharged electric bike or motorcycle batteries with fully charged ones, without having to wait for hours to recharge them. Battery swapping is an alternative to traditional charging at a charging station, which can take a long time, especially for larger battery capacities. When people need to swap their electric bike or motorcycle batteries, TYCORUN 12 ports battery swap station is a convenient option.
Features of TYCORUN 12 ports battery swap station:
- Modular design, to ensure flexible configuration.
- Dynamic safety fast charge, automatic monitoring and allocation, 24hbig data monitoring, guaranteeing high safety.
- Support intelligent functions, such as remote control, OTA upgrade.
- Smaller area occupation, suitable for 72V/60V/48V charging.
- Support customized design, such as logo, appearance, rain shelter, camera, etc.
- Suitable for electric motorcycle, e-bike, electric scooter and other two/three-wheeled electric vehicles.
Specifications of TYCORUN 12 ports battery swap station:
Specification |
Parameters |
Cabinet size |
750(W)*540(L)*1800(H)mm |
Maximum size in port |
260(W) *420(L) *200(H)mm |
Number of battery ports |
12 ports (individual control) |
Battery communication |
RS485, CAN |
Touch display |
Standard, 7 inches |
Input voltage |
100~240VAC 50HZ |
Maximum input power |
9200W/6500W(optional) |
Single port maximum charging power |
900W/1200W(optional) |
Charge Voltage Platform |
72V/60V/48V |
Working environment |
Altitude≤3000m, 0~55℃ |
Dynamic Power Adjustment |
Standard configuration, dynamically output charging power according to charging strategy |
Speaker |
Standard (built-in) |
Protection performance |
Lightning protection / dustproof and waterproof IP54 / water immersion power-off protection |
Battery Health Check |
Standard configuration, cabinet inspection |
High temperature detection |
Standard, background warning function |
Remote monitoring |
Support (need to cooperate with management background, remote diagnosis/cabinet control) |
Indicator light |
Standard (three colors) |
Communication |
Standard 4G/BT, optional GPS/WIFI |
Swapping method |
Scan code to swap battery/reservation to swap battery/offline battery swap |
Camera |
Camera (outlay,optional) |
Fire extinguisher |
S-type aerosol |
Fall prevention block |
Optional (X4) |
Certification requirements |
Can be arranged according to market demand (consider certification fee & cycle) |
Appearance |
Can be customized according to customer needs |
