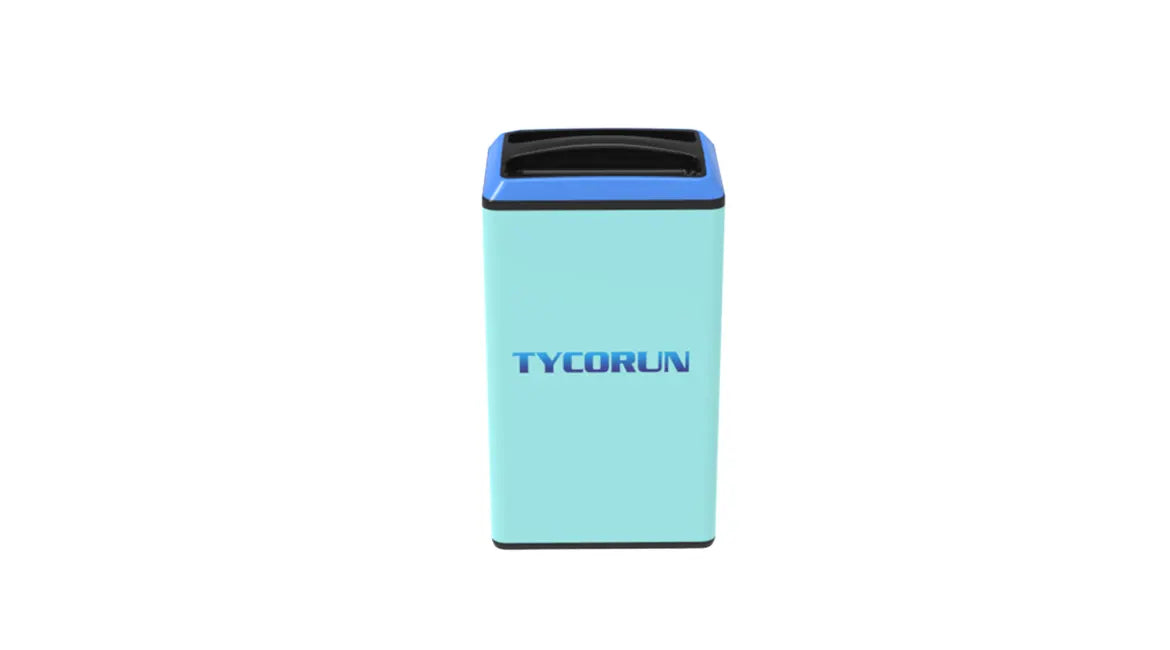

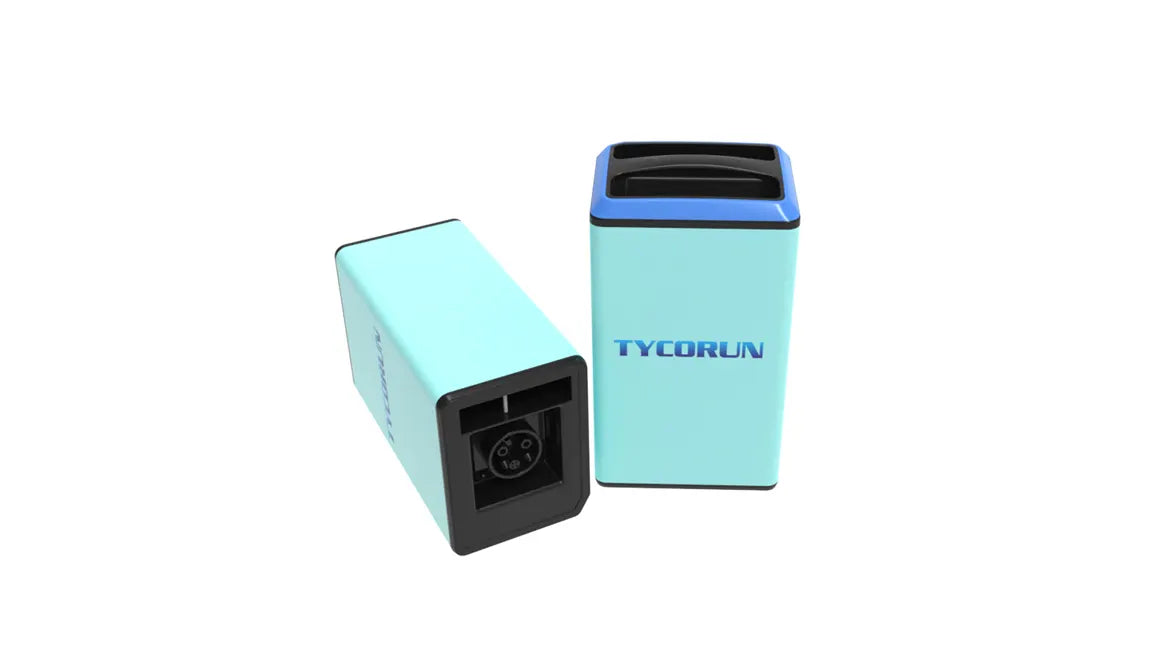

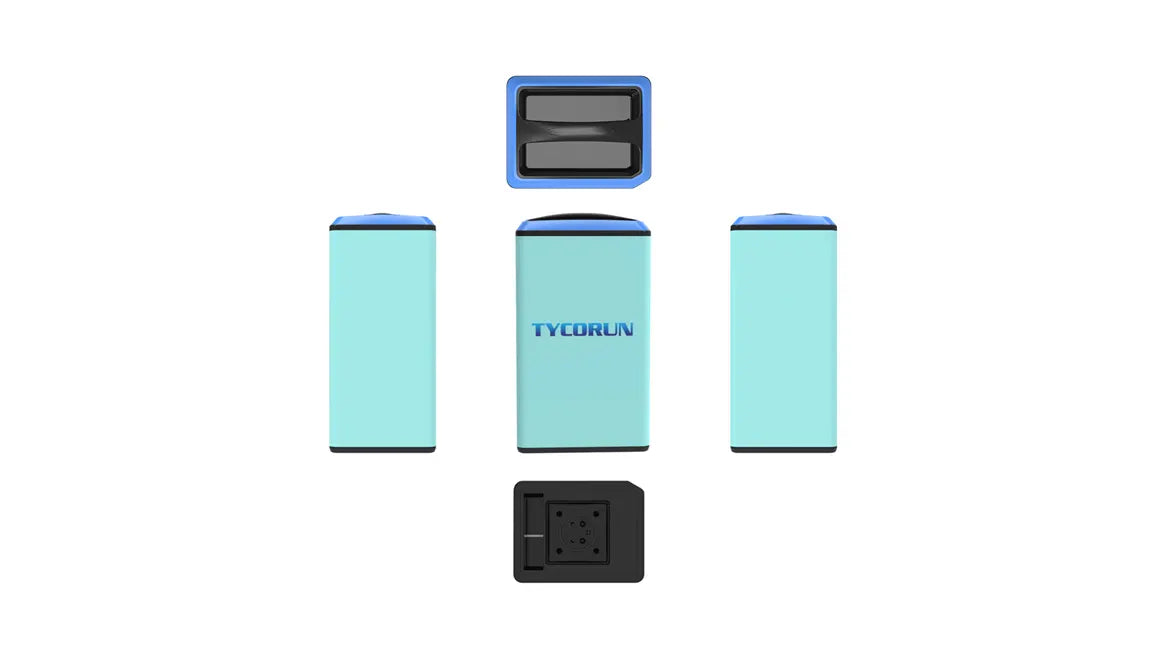

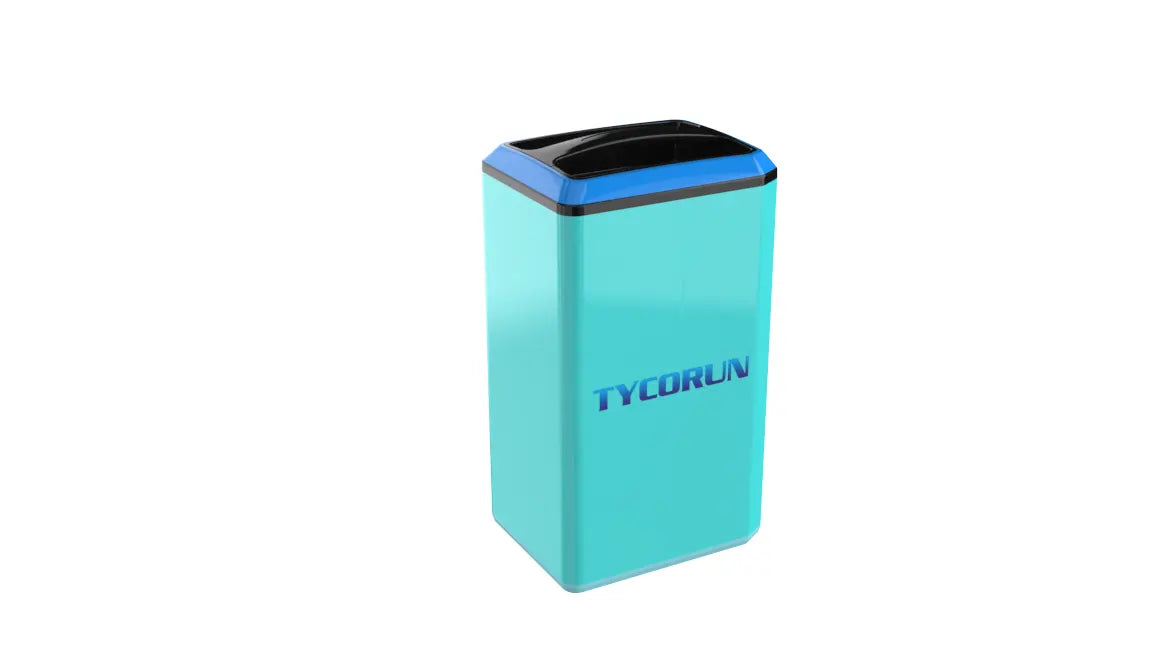

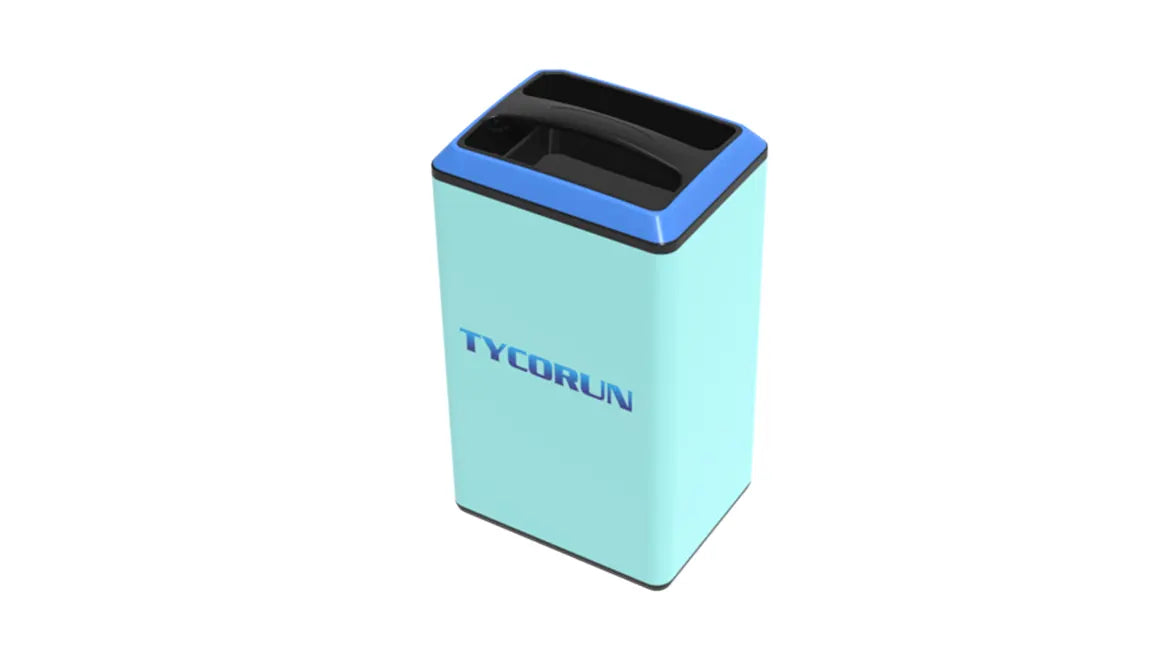

TYCORUN 72v 30ah lithium battery swappable is suitable for TYCORUN 8/9 ports swap station and can be uesd in electric motorcycle, ebike, electric scooter and other two/three - wheeled electric vehicles. There are also 48v/60v swap battery for you to choose from.
TYCORUN ENERGY provides one-stop motorcycle battery swap system solution, including two/three - wheeled swap battery, battery swap cabinet with different specifications, and battery swapping system (APP and Cloud management platform), it can be customized or purchased separately.
Specifications of TYCORUN 72v 30ah lithium battery swappable for battery replacement cabinet
Project |
Specifications |
|
Typical capacity |
30Ah (standard test) |
|
Minimum capacity |
28Ah (standard test) |
|
Operation voltage |
72-74V |
|
Discharge cut-off voltage |
56V |
|
Charging voltage |
84V |
|
Internal resistance |
≤150mΩ |
|
Maximum charging current |
30A |
|
Limited charging voltage |
84V |
|
Maximum discharging current |
60A |
|
Range of working temperature |
0℃–50℃ |
|
Storage temperature |
Charge |
-20℃–60℃ |
|
Discharge |
-20℃–25℃ |
Product Size |
160*185*330mm |
|
Weight |
12.5Kg |
Storage of 72v 30ah lithium battery swappable for battery replacement cabinet
If stored for a long time (don’t used, exceed three months), the cell should be stored in drying and cooling place. The PACK is to be stored in a condition that the temperature of 23±2℃ and the humidity 0f 45%-75%. Long-term use of unused batteries to recharge every 3 months. Ensure that the battery voltage is within the above range.
Cautions of 72v 30ah lithium battery swappable for battery replacement cabinet
- Do not immerse the battery in water or allow it to get wet.
- Do not use or store the battery near sources of heat such as a fire or heater.
- Do not use any chargers other than those recommended by TGPRO.
- Do not reverse the positive(+) and negative(-) terminals.
- Do not connect the battery directly to wall outlets or car cigarette-lighter sockets.
- Do not put the battery into a fire or apply direct heat to it.
- Do not short-circuit the battery by connecting wires or other metal objects to the positive(+) and negative(-) terminals.
- Do not pierce the battery casing with a nail or other sharp object, break it open with a hammer or step on it.
- Do not strike, throw or subject the battery to sever physical shock.
- Do not directly solder the battery terminals.
- Do not attempt to disassemble or modify the battery in any way.
- Do not place the battery in a microwave oven or pressurized container.
- Do not use the battery in combination with primary batteries(such as dry-cell batteries) or batteries of different capacity, type or brand.
